SCHMIDT & BENDER PM II 5-20×50 ULTRA SHORT P4FL 1CM CW DT35 MTC LT / ST ZC CT

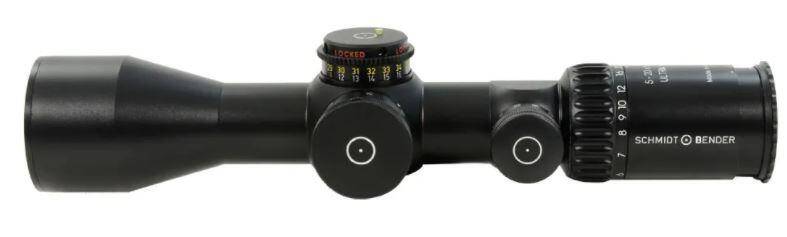

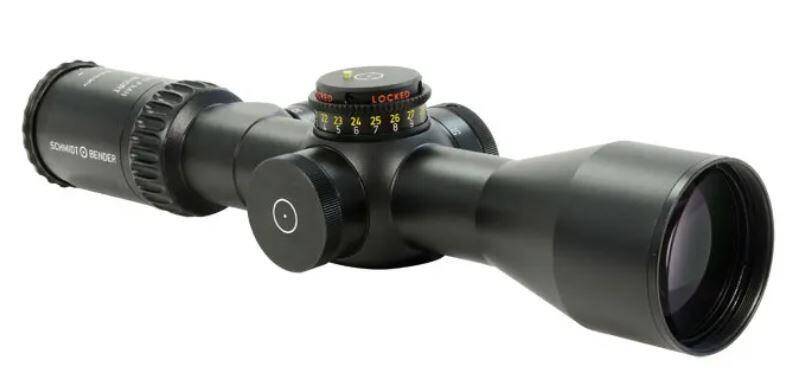

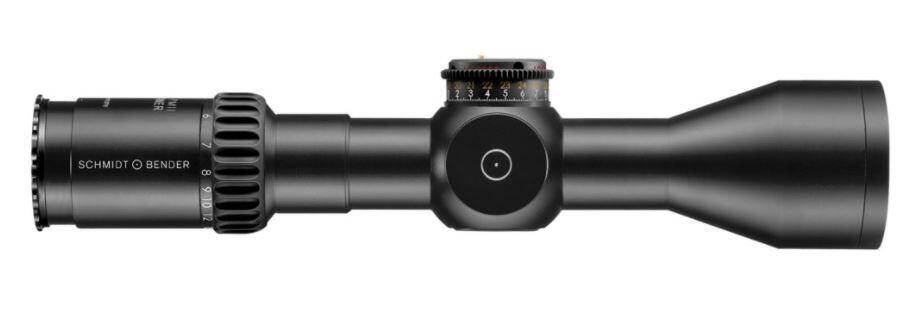

The Schmidt Bender 5-20×50 PMII Ultra Short Riflescope was designed to take up as little real-estate on a rifle as possible while still providing a enough magnification to engage targets at medium to long range. Coming in at less than 12 inches in length, the 5-20×50 PMII Ultra Short leaves plenty of room for attachments like clip-on thermal/night vision optics and tactical lasers. The scope is built on a 34mm tube that aides in providing a large range of adjustment that is required for long range shooting. The 50mm objective in combination with the tube size and proprietary lens coatings produce a crystal clear sight picture with 90% light transmission.

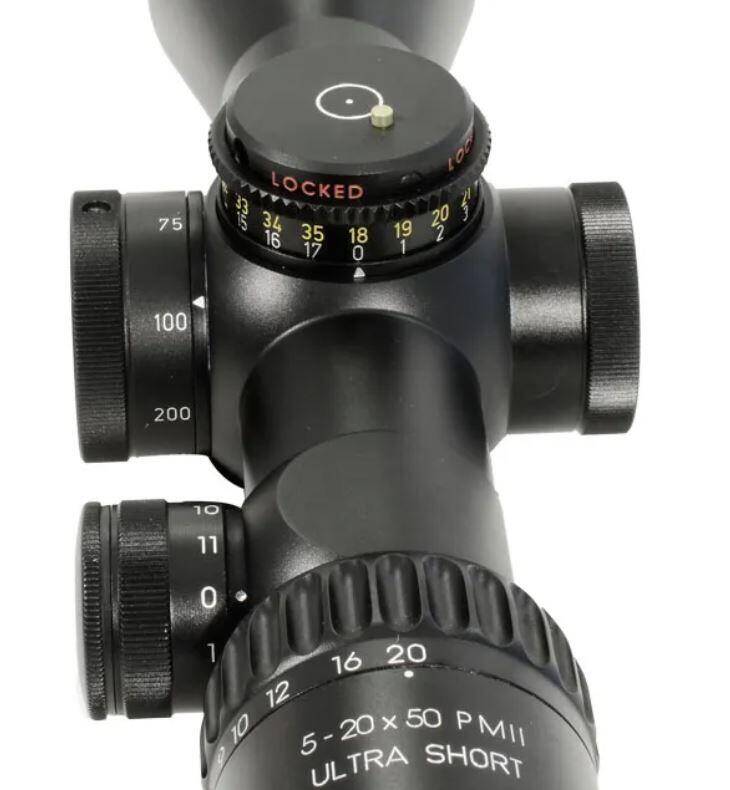

To keep the riflescope as compact as possible, all Schmidt Bender 5-20×50 PMII Ultra Short Riflescopes feature low profile elevation and windage turrets, allowing for the mounting of reflex sights for close range engagements. All Schmidt Bender 5-20×50 PMII Ultra Short scopes come with locking turrets and ZeroClick to ensure the scopes zero is never unintentionally reset or lost. Some elevation turret options for the 5-20×50 PMII Ultra Short also feature Schmidt Bender’s MTC (More Tactile Clicks) technology, allowing for faster and more intuitive adjustments to elevation when engaging targets are varying distances.

Features of the Schmidt Bender 5-20×50 PMII Ultra Short Riflescope

• First Focal Plane Reticles
• 90% Light Transmission
• Locking Turrets w/ ZeroClick
• Compact 34mm Scope Body
• Low Profile Turret Design

Specifications

• Scope Weight: 30.41oz
• Scope Length: 300mm/11.8″
• Magnification Range: 5-20x
• Scope Objective Diameter: 50mm
• Scope Tube Size / Mount: 34mm
• Turret Adjustment (Click Value): 1 cm, CW 35 mRad total travel
• Elevation Turret Details: DT35 MTC LT (Double Turn 35 mrad; More Tactile Clicks; Locking Turret)
• 350 cm/100 m
• Parallax Adjustment: Side Focus Parallax 25m->∞
• Reticle Position: First Focal Plane

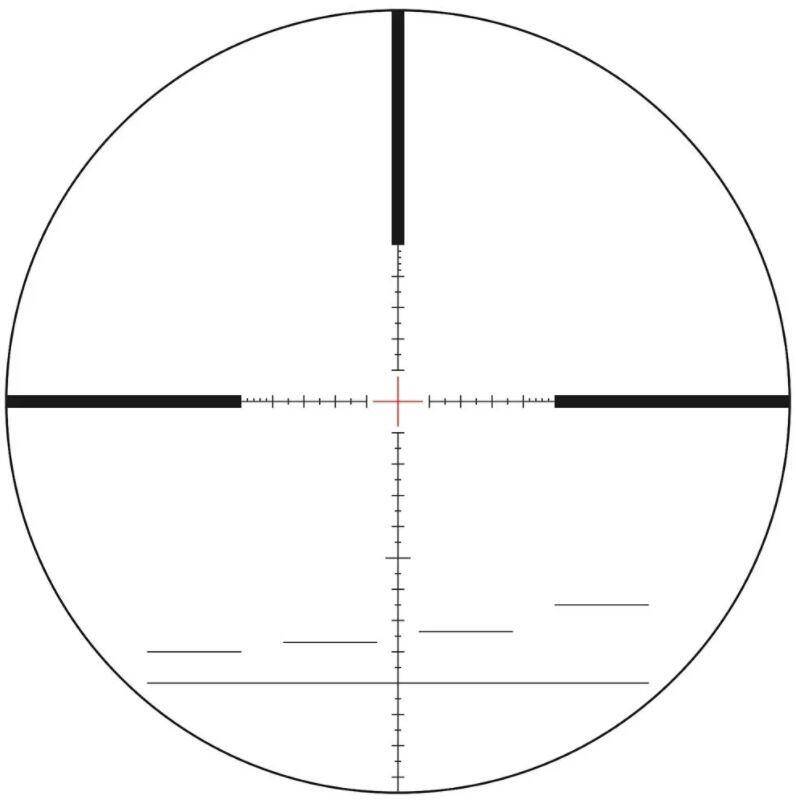

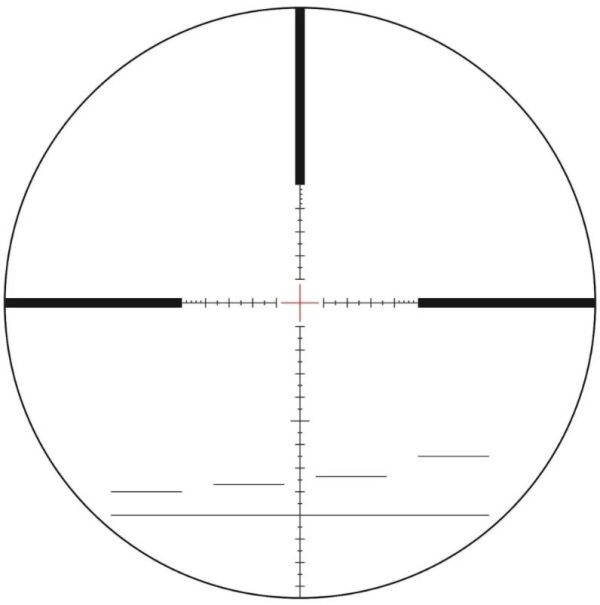

• Reticle Details: P4F Reticle
• Field of View: 7.8m – 1.95m @ 100m
• Exit Pupil: 10.0 – 2.5 mm
• Eye Relief: 90mm/3.54″
• Light Transmission: 90%
