Optimised Scope Mount for Tikka T3/T3X Builds

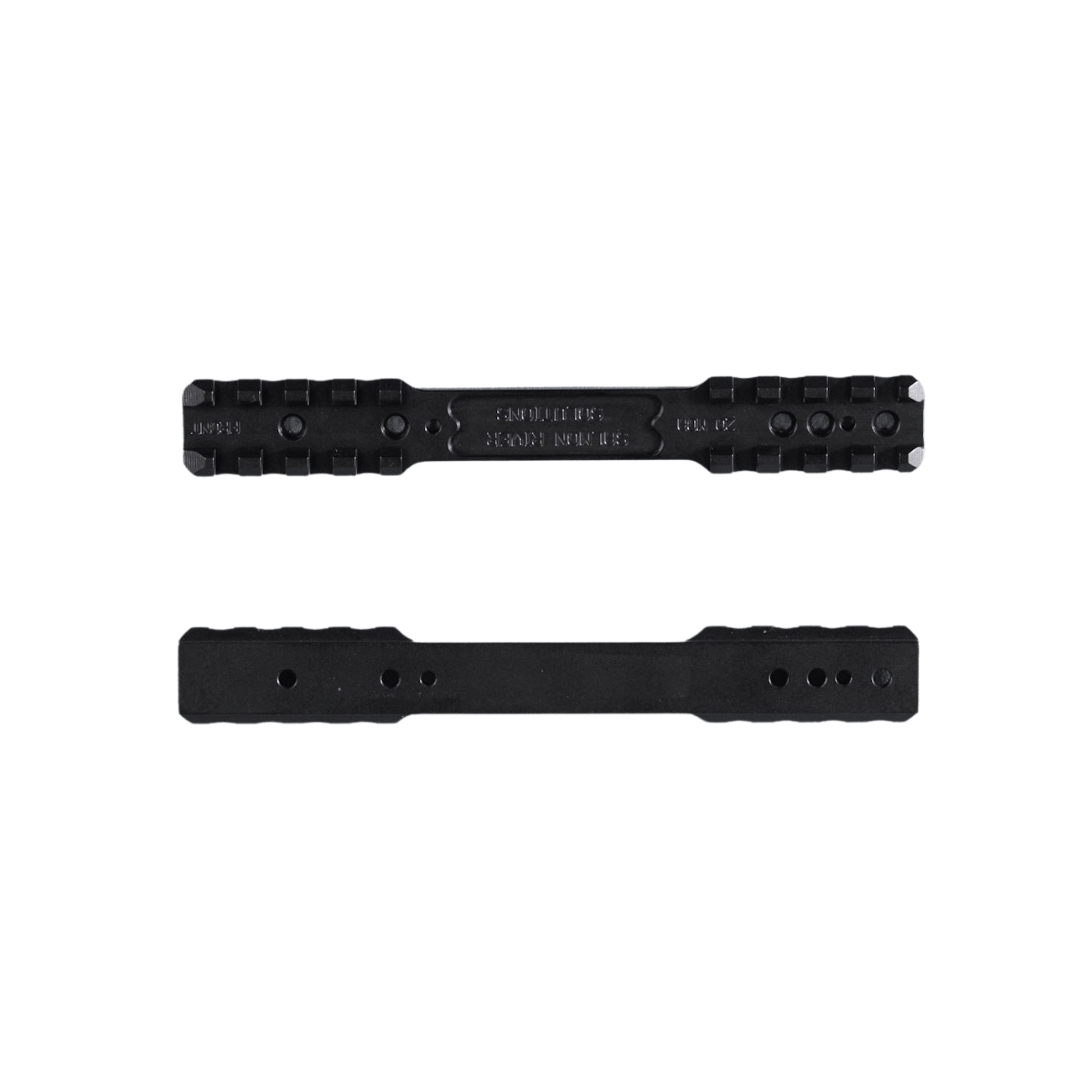

The SRS Tikka T3 / T3X Scope Rail 20 MOA is engineered for shooters who want a rugged, lightweight, and accurate mounting platform for their optics. Crafted from aircraft-grade 7075 aluminium with a black anodised finish, it adds a 20 MOA cant to help extend elevation range — ideal for long-range shooting while keeping the rail low and unobtrusive.
This rail is ultralight and ultra-low profile, with the centre area scalloped and central Picatinny lugs removed to maximise clearance at the ejection port — an important improvement on traditional bases where scope rails can interfere with bolt manipulation. At roughly 6.2″ overall length and ~1.3 oz, it adds minimal weight while delivering strong, dependable support for your scope.
Included with the rail are (4) 6-48 T10 mounting bolts and (1) 3 mm recoil pin to ensure secure, repeatable installation. Torque bolts to 15 in-lbs with blue Loctite recommended for lasting stability.
| Specification | Details |
|---|---|
| Rail Type | Picatinny scope rail with 20 MOA cant |
| Fitment | Tikka T3 & T3X rifles |
| Material | Precision-machined 7075 aluminium, black anodised |
| Overall Length | 6.2″ (~157 mm) |
| Weight | ~1.3 oz (~37 g) |
| Cant | 20 MOA — ideal for long-range elevation support |
| Mounting Hardware | (4) 6-48 T10 bolts + (1) 3 mm recoil pin included |
| Installation Torque | 15 in-lbs with blue Loctite recommended |
| Finish | Black anodised |
| Use Case | Secure, low-profile scope base with 20 MOA cant for precision builds |
Product Variants
This product typically comes as a single fixed configuration engineered specifically for Tikka T3/T3X rifles — no variant selections required.
Long-Range Ready: The built-in 20 MOA cant gives extra elevation adjustment for long-range optics, reducing reliance on scope internal adjustment.
Optimised Clearance: Central Picatinny lugs are scalloped to maximise space around the ejection port, making this rail more functional on Tikka actions.
Quality Hardware Included: Comes with mounting bolts and a recoil pin for secure and repeatable installation.
Lightweight Design: Adds minimal weight thanks to precision machining from 7075 aluminium.
