Leica Calonox View Thermal Monocular
Leica Calonox thermal imaging cameras.
The completely new developed Leica Calonox thermal imaging cameras are offered in two versions: As a pure observation device – Leica Calonox “View” – and as an header device for mounting in conjunction on a riflescope – Leica Calonox “Sight”.
Leica Camera has been known for many years as a manufacturer of digital cameras for the highest demands. In contrast to conventional digital cameras, thermal imaging cameras record infra-red radiation, which is not visible to the human eye, as a thermal image. The two new Leica Calonox thermal imaging cameras have been optimised for their respective applications and feature outstanding Leica typical image quality with particularly detailed grey tones, outstanding contrast and high detail resolution at all observation distances.
The permanently installed rechargeable battery with more than 6 hours of operating time is particularly well protected against cold and weather influences by its positioning inside the Calonox devices. The unique product design is oriented towards the needs of the hunter and integrates perfectly into the hunter’s equipment due to its cylindrical shape and ease of use – whether mounted or hand-held. Operation with only three buttons is intuitive, user-friendly and reduced to the essentials. Both models feature a fast 42 mm lens.

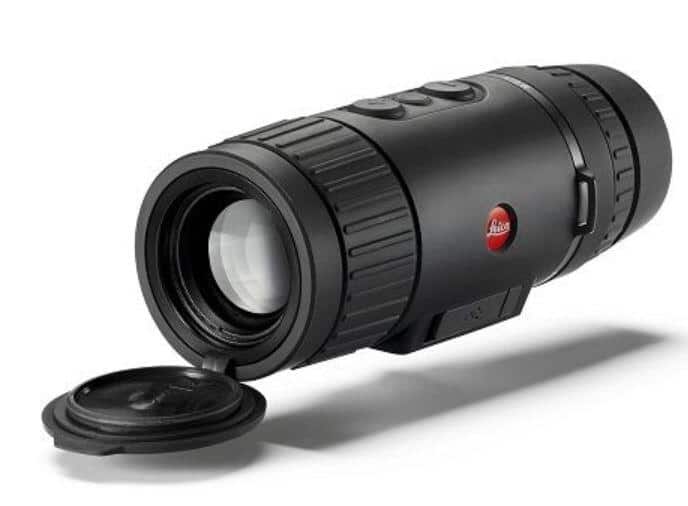

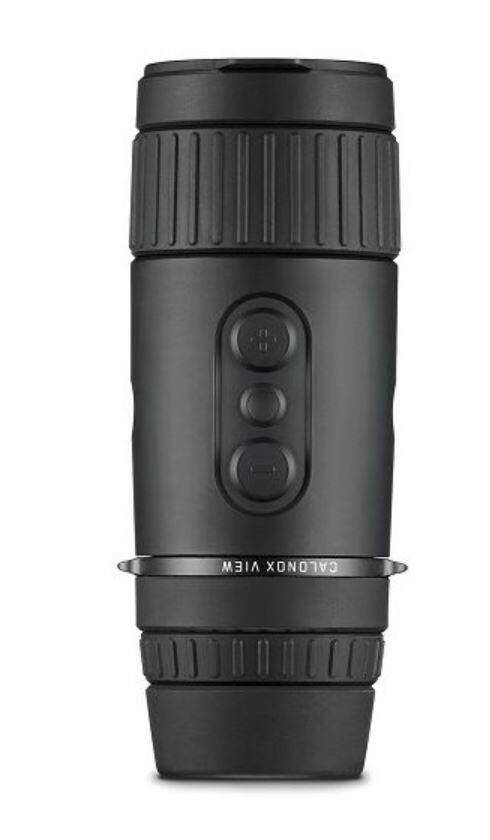

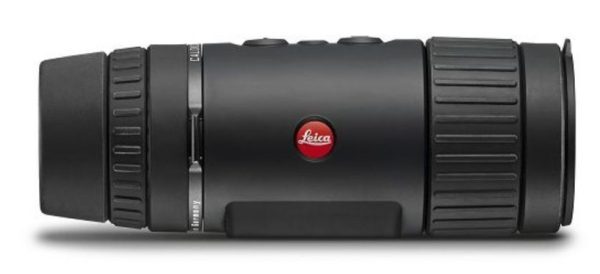

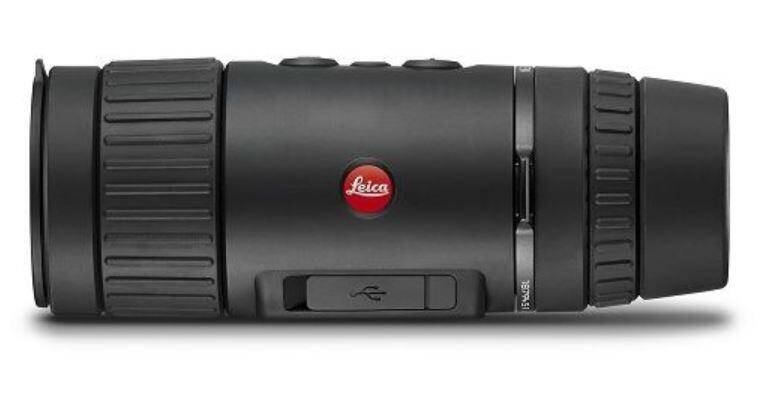

Leica Calonox “View”
The outstanding detection range of the Leica Calonox “View” is based on a high-end vanadium oxide sensor with 640×512 pixels and 12µm pixel size at excellent temperature resolution. The 2.5x basic optical magnification provides a large field of view and is therefore ideal for observations in the immediate vicinity. Using digital zoom up to 10x magnification in combination with the outstanding LCOS display with 1280×960 pixels and Leica’s own image processing (Leica Image Optimisation – LIO), no details remain hidden even at great distances.
The common advantages of the Leica Calonox at a glance
- Outstanding imaging performance – extremely high contrast and detail
- High detection and recognition range
- Leica Image Optimisation – LIO
- Integrated, protected battery, additionally possible with power bank use
- Two models – optimised for the respective application
- High speed 42mm lens
- Application-oriented design with intuitive 3-button operation
|Sensor size||640 x 512px|
|Pixel size||12 µm|
|Display resolution||1280 x 960 px|
|Angular field of view||10.5 x 8.4 degrees|
|Dimension||170 x 65 mm|
|Image repetition frequency||50Hz|
|Optical basic magnification||2.5x|
|Diopter adjustment||±5 dpt|
|Recognition range||1000m/6 pixels|
|Video/Picture resolution||768 x 576 px|
|Wireless connection||Wi-Fi (2.4GHz)|
|Operating temperature||-10 to +50 degrees Celcius|
|Operating temperature (charge battery)||+10 to +30 °C|
|Battery life||approx. 4 -5h|
|Tripod thread||A ¼ DIN 4503 (¼”), M5 standard thread|
|Colour mode||Red Hot, White Hot, Black Hot, Rainbow|
|Magnification||2.5 x-10 x|
|Detection Range||3000m/2 pixels|
|Level Of Protection||IP67|
