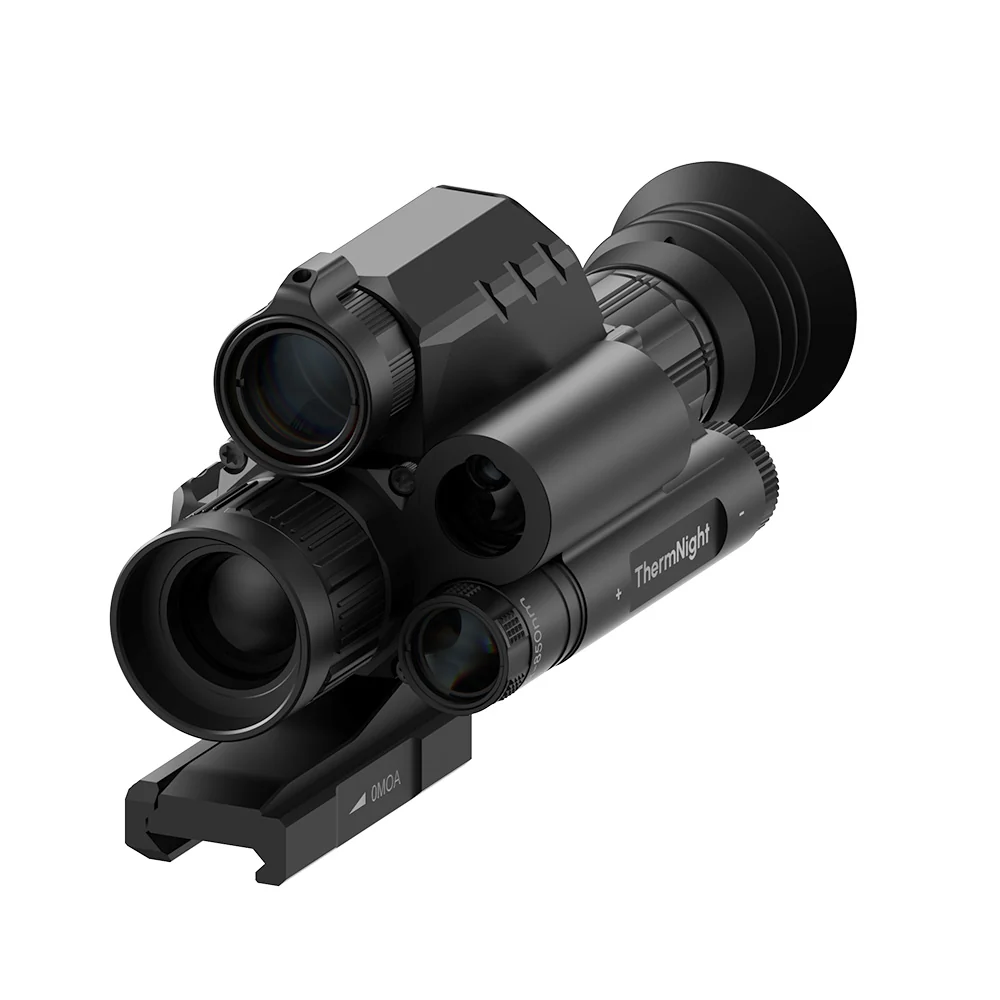

DNT Optics TNC225R ThermNight — Thermal & Night Vision Multi-Spectral Scope with Laser Rangefinder & Ballistic Calculator

The TNC225R ThermNight is DNT Optics’ dual-sensor fusion scope — a 256×192 thermal channel and a 1920×1080 Sony STARVIS 2 night vision channel, running side by side in the same housing. Switch between them with one button, or run Picture-in-Picture to see both a thermal detection view and a clear digital night vision image at the same time. Add a 1,100-yard laser rangefinder, a built-in ballistic calculator with digital gyroscope, and one-shot zeroing across both channels, and you’ve got a single optic that spots, identifies and ranges a target after dark.

See it in action

Key features

• Dual-sensor fusion: A 256×192 thermal channel (25mm lens, 3x base, 3–12x digital) alongside a 1920×1080 Sony STARVIS 2 night vision channel (52mm lens, 5x base, 5–20x digital) in one housing.
• Picture-in-Picture (PIP) mode: View thermal detection and night vision identification in the same frame — spot the heat signature, then confirm what it is, without switching modes.
• Integrated laser rangefinder: Class 3R eye-safe, ranging out to 1,100 yards.
• Built-in ballistic calculator with digital gyroscope: DNT’s ballistic engine gives dial-in or holdover solutions, with cant and inclination correction from the onboard gyroscope.
• One-shot zeroing on both channels: Zero the thermal and night vision channels independently, each holding its own zero.
• Switchable dual-band IR illuminator: Detachable illuminator switches between 850nm and 940nm for the night vision channel.
• 1024×768 Micro-OLED display: Shared by both channels, at 50Hz.
• WiFi and Bluetooth enabled: Stream, review and manage footage from your phone via the DNT app.
• Built-in 32GB memory: Record what you see without a separate memory card.
• 800Gs shock rating and IP67 waterproofing: Built to handle heavy recoil and keep working through rain, dust and mud.

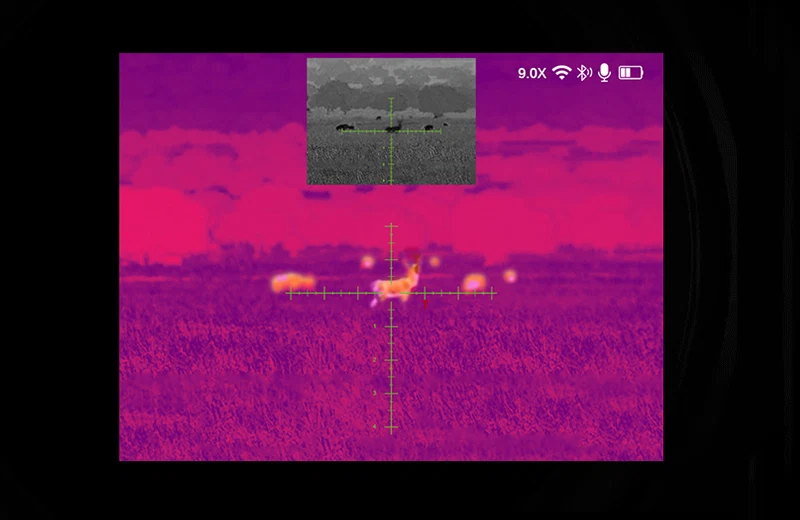

Two views, one target

PIP mode is what sets the ThermNight apart from a single-sensor scope: the thermal channel finds the heat signature in total darkness, while the night vision channel — built around a 1920×1080 Sony STARVIS 2 sensor — shows you a genuinely clear digital image to confirm exactly what you’re looking at, both on screen at once.

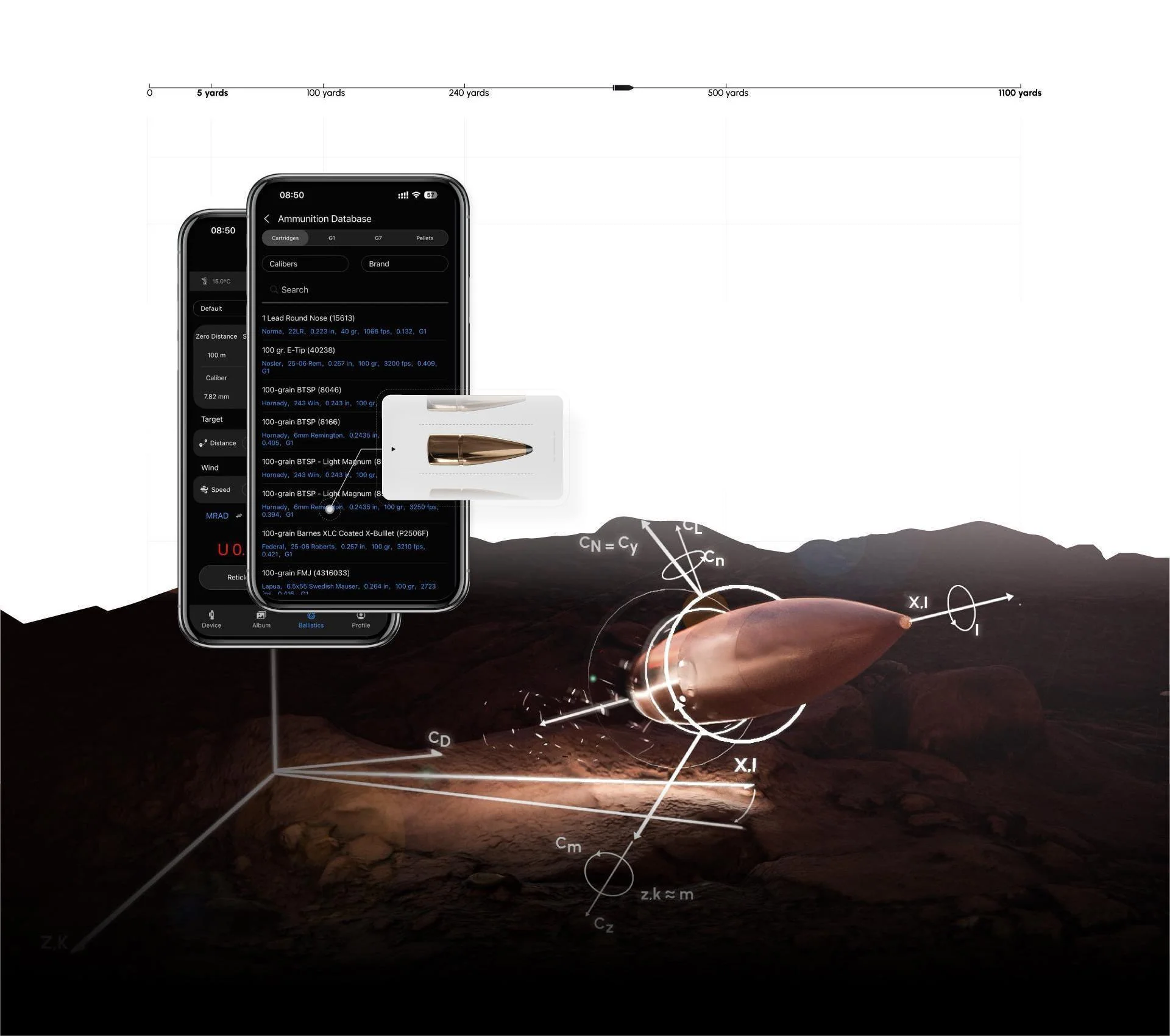

Ranging and ballistics, with a gyroscope built in

Range a target out to 1,100 yards with one press, and the ThermNight’s ballistic engine turns that distance into a dial-in or holdover solution using your ammunition profile from the DNT app. A digital gyroscope tracks cant and inclination as you shoot, correcting for angled shots rather than just flat-range distance — and with one-shot zeroing on each channel, your thermal and night vision zeros are set independently and held separately.

Full specifications

Thermal channel
Thermal sensor resolution	256 × 192
Sensor type	Uncooled infrared, 12×12μm pixel size
Thermal sensitivity (NETD)	≤25mK @ 25°C
Objective lens	25mm
Base / digital magnification	3x base, 3–6–9–12x digital
Field of view	7.03° × 5.28°
Night vision channel
Night vision sensor	1920 × 1080, Sony STARVIS 2
Sensor frame rate	60 FPS
Objective lens	52mm
Base / digital magnification	5x base, 5–20x digital
Field of view	6.13° × 3.45°
Eye relief	1.8″
Diopter adjustment	±5D
Shared systems
Display	1024×768 Micro-OLED, 50Hz
Laser rangefinder range	Up to 1,100 yards
IR illuminator	Detachable, switchable 850nm / 940nm, Class 3R eye-safe
Ballistic calculator	Integrated DNT Ballistic Engine with digital gyroscope (cant/inclination), dial-in or holdover, profiles via DNT app
Zeroing	One-shot zeroing, independent per channel

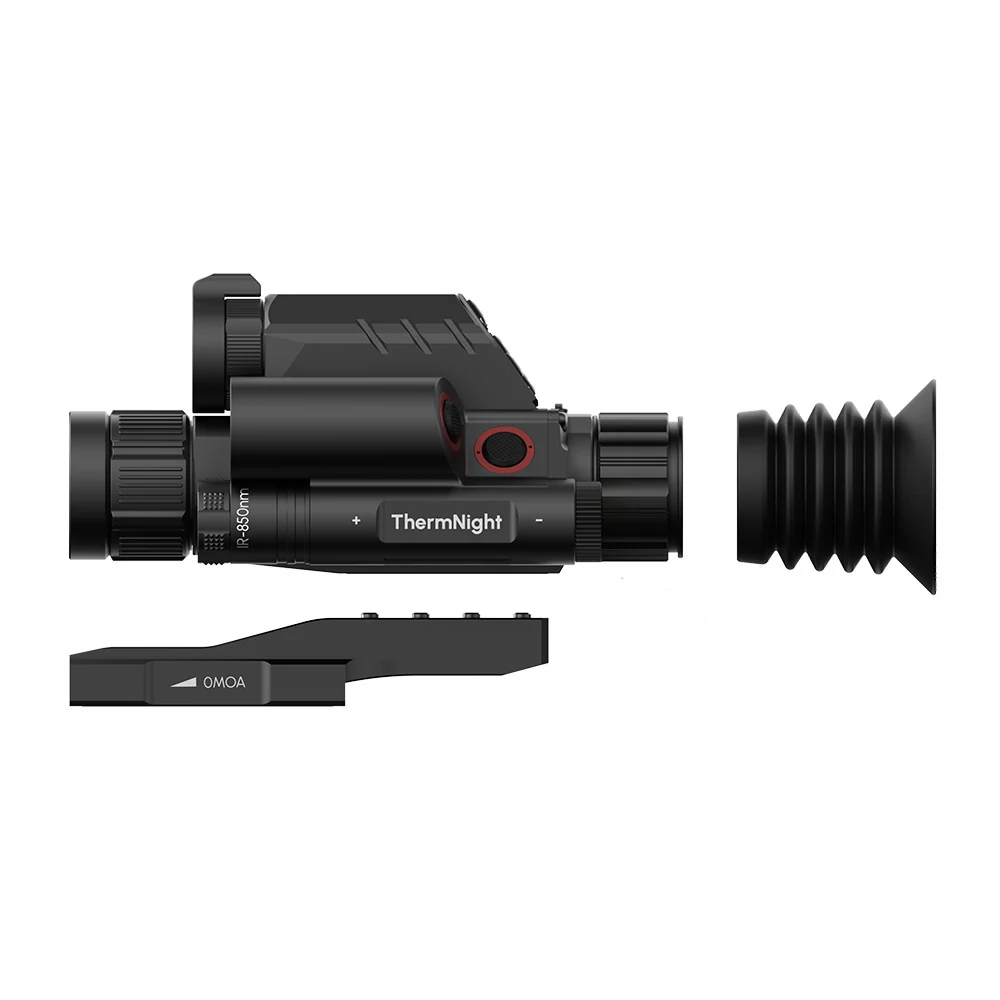

Mounting	PMS Picatinny mount, 0 MOA (included)
Battery	2× 18650 flat-top (included), up to 5 hours
Charging	5V USB Type-C
Onboard memory	32GB built-in
Connectivity	WiFi, Bluetooth, DNT companion app
Shock resistance	800Gs
Weight	22.8 oz (646g)
Dimensions	6.7″ × 3.1″–3.3″ × 3″–3.1″
Waterproof rating	IP67 (dust and water resistant)
Operating temperature	−4°F to 122°F

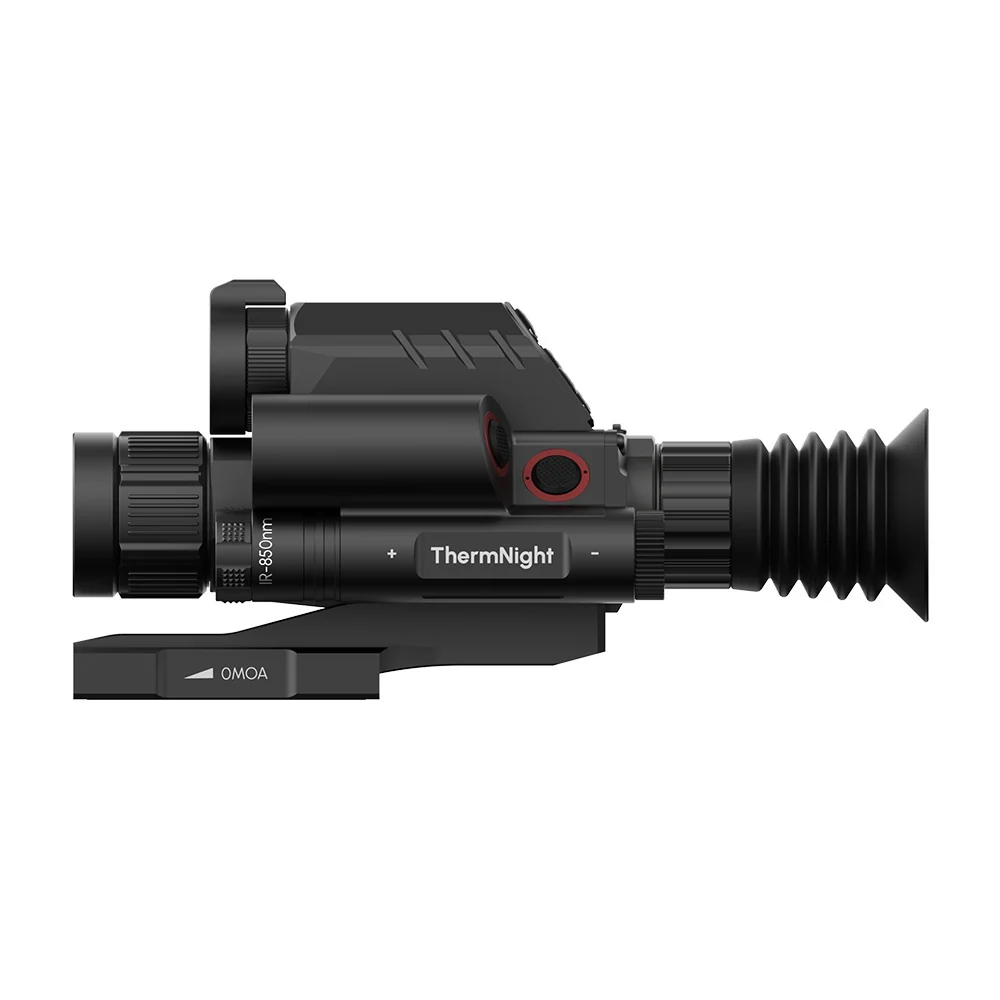

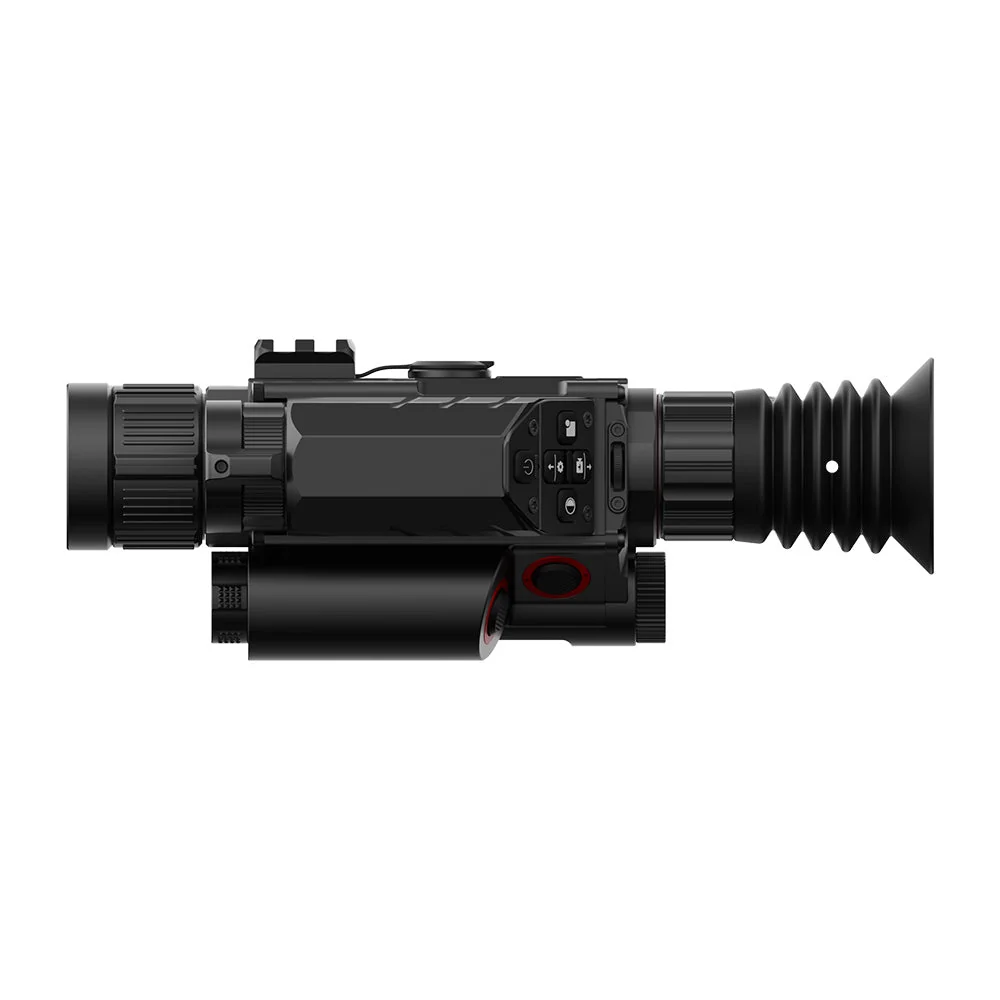

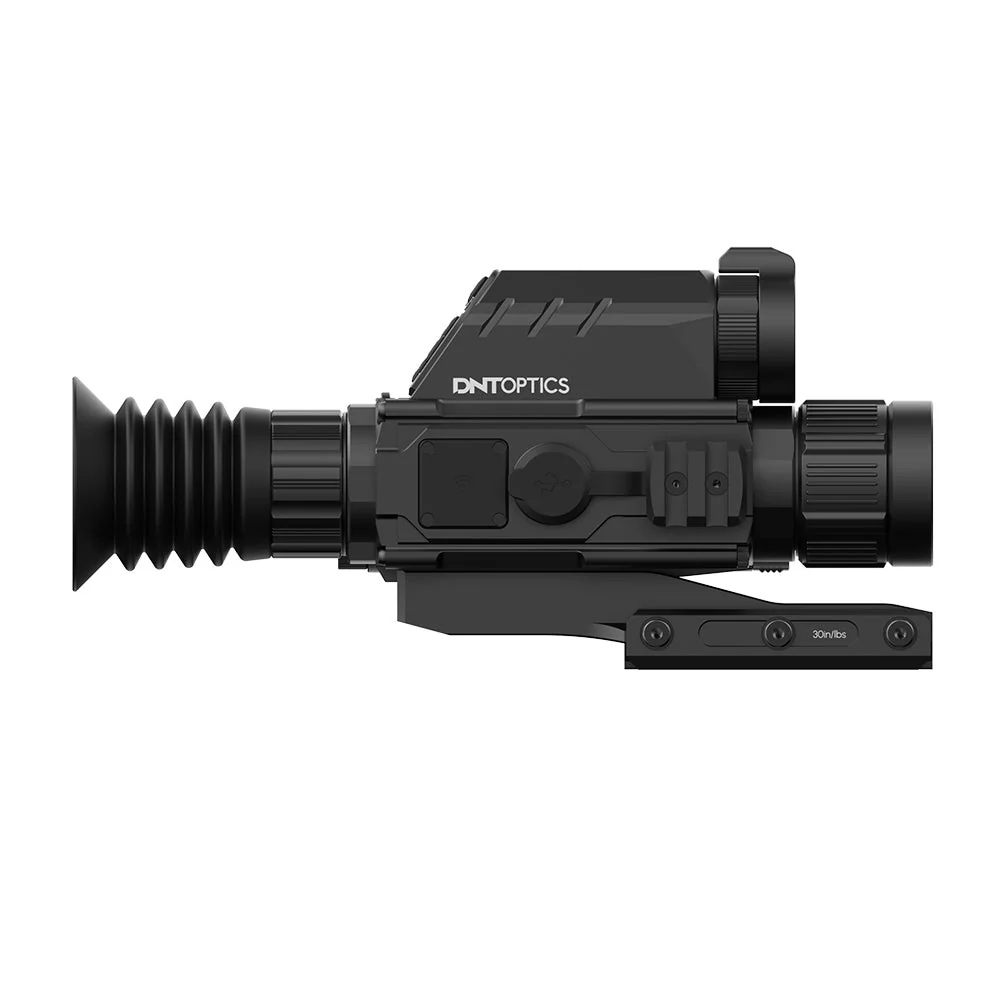

A closer look

What’s in the box

• TNC225R ThermNight scope
• PMS Picatinny mount (0 MOA)
• Eye cup
• Flip-up lens cover
• 2× 18650 flat-top batteries
• Battery charger
• 2× USB cables
• Lens cleaning cloth
• User manual and quick start guide

Who it’s for

Built for hunters and professional users who want to identify a target with confidence before taking a shot, not just detect that something’s there. The PIP view, integrated rangefinder and gyroscope-corrected ballistics make it suited to serious night hunting at range, while the shock-resistant housing handles standard hunting calibers and heavier rifles alike.

Warranty

Covered by DNT Optics’ 3-year warranty with product registration.
