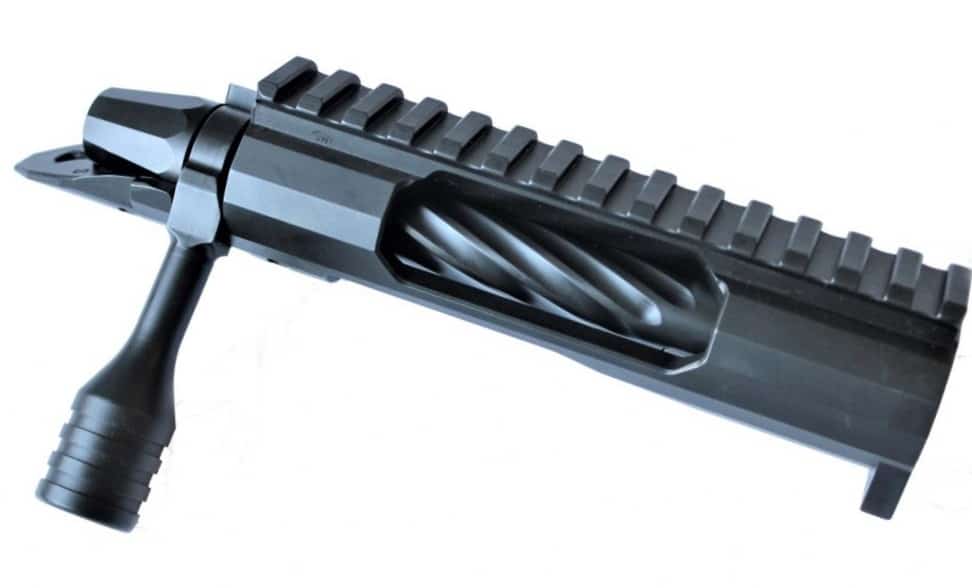

The FUZION – Short Action

Everything about the FUZION has been designed to provide you with the ultimate rifle. Whether you are building a hunting, long range competition, or tactical rifle, the FUZION will ensure that you are getting the accuracy you expect. Available in long, medium and short action configurations

SPECIFICATIONS

Available in long, medium and short action Remington 700™ footprint configuration in repeater and single shot versions. Each action is cut from pre-hardened 416R stainless steel (40 rockwell).

• Receiver raceway cut with wire EDM to precise tolerances

• Magazine well cut for AW style magazines on short actions, BDL style cut on long actions. Remington BDL style cutout on short actions available upon request

• Wyatt BDL internal overall length–MBE-3 Long Action Box(3.825″), Medium Action(3.225″), MBE-4 Short Action(2.995″)

• Medium Hawkins BDL bottom metal, Mag box, spring, follower and action screws available from LPA- $295

• Side bolt release

• 1.350″ multi flat diameter(Remington 700 inlet compatible)

• Long action weight including bolt assembly-34.5 oz

• Short action weight including bolt assembly-31.5 oz

• Right or Left hand configurations available

• 1 1/16″x16 tpi barrel thread tenon

• 20 MOA picatinny rail. Our Alpine Port is available on Fuzion actions. This option has the center portion of the picatinny rail cut out like our Fuzion-Ti model.

• Short Action Full rail version comes with receiver body nitrided. Nitride option available on other Fuzion models for $100.

One piece fluted bolt constructed from pre-hardened 4340 chrome moly

• Mini M-16 style extractor

• Plunger ejector

• Light weight firing pin assembly provides fastest locktime with .060” diameter firing pin.

• Threaded bolt handle provides ability to interchange bolt knobs

• Nitride surface finish is standard on the bolt.
