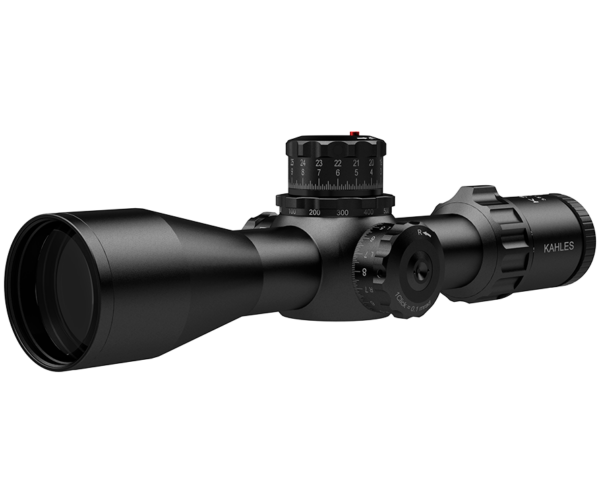

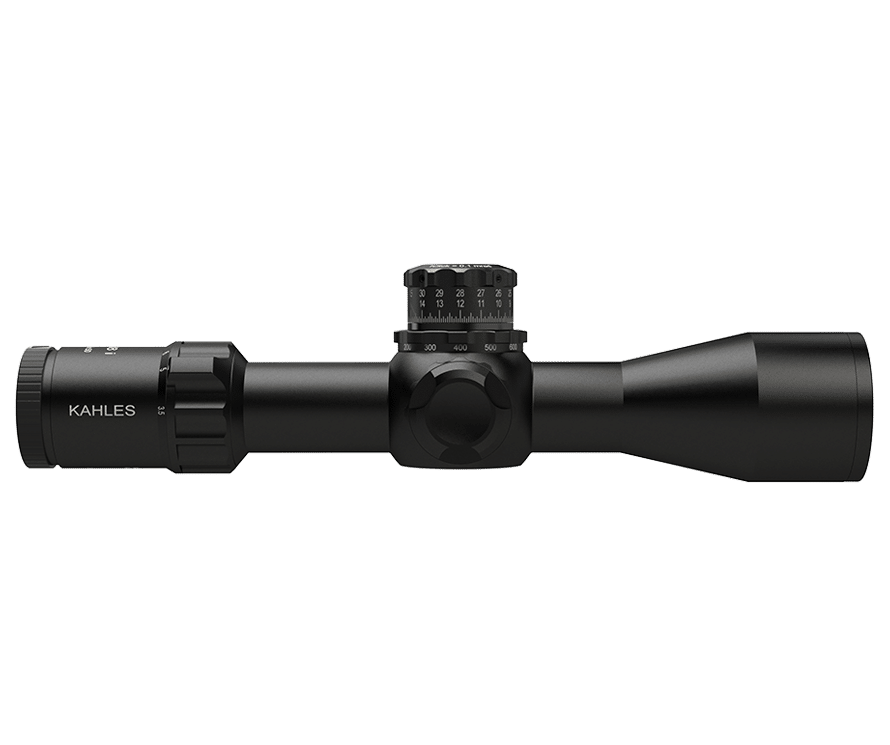

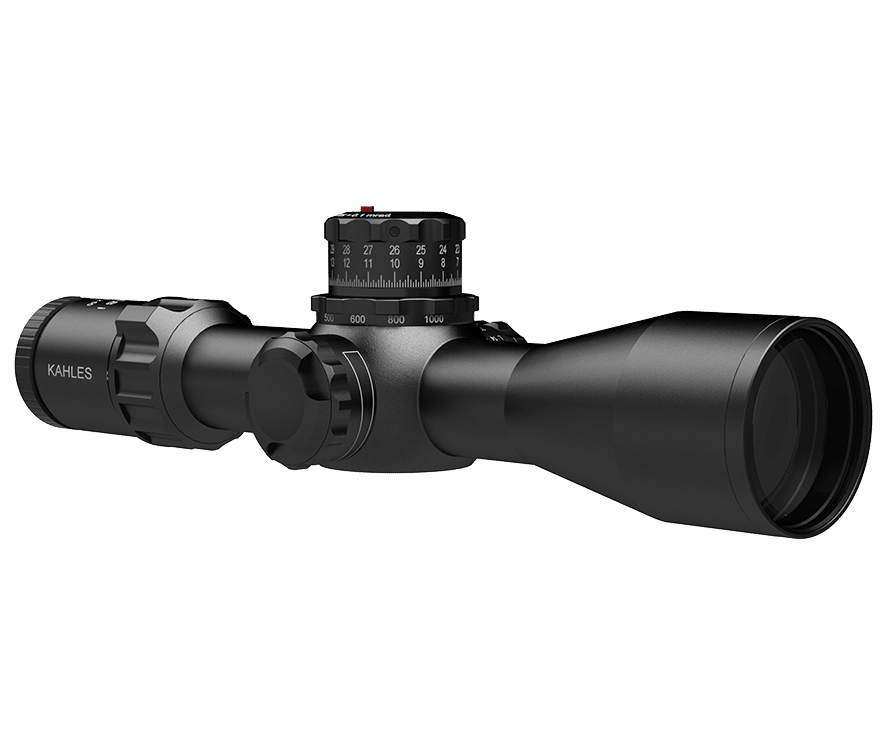

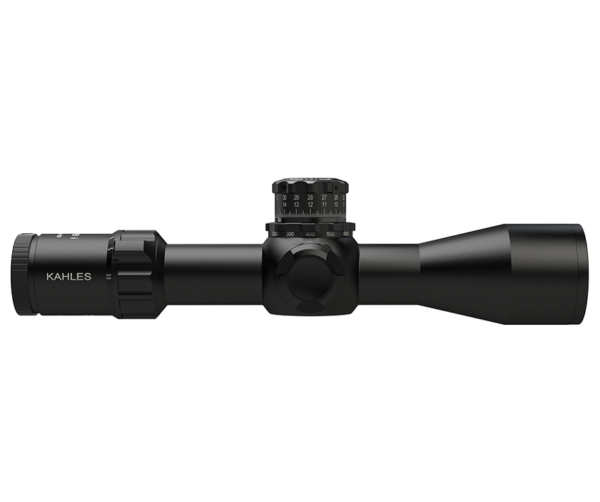

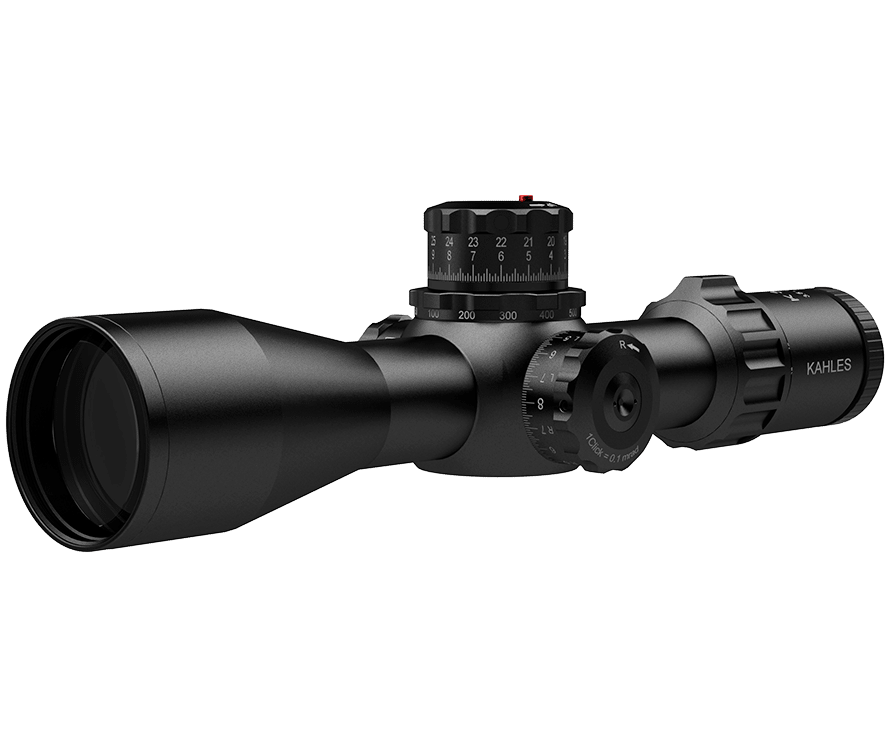

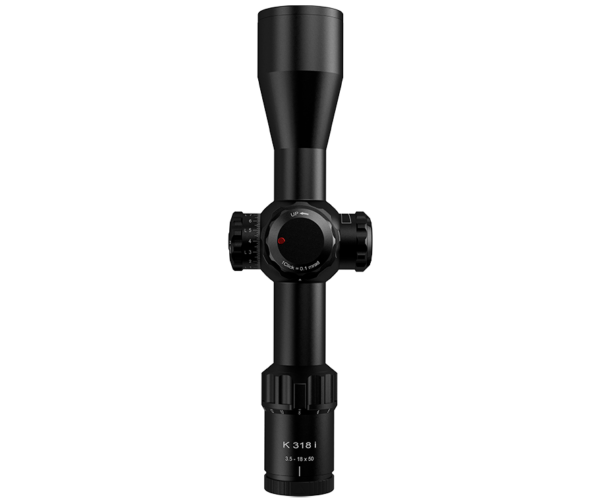

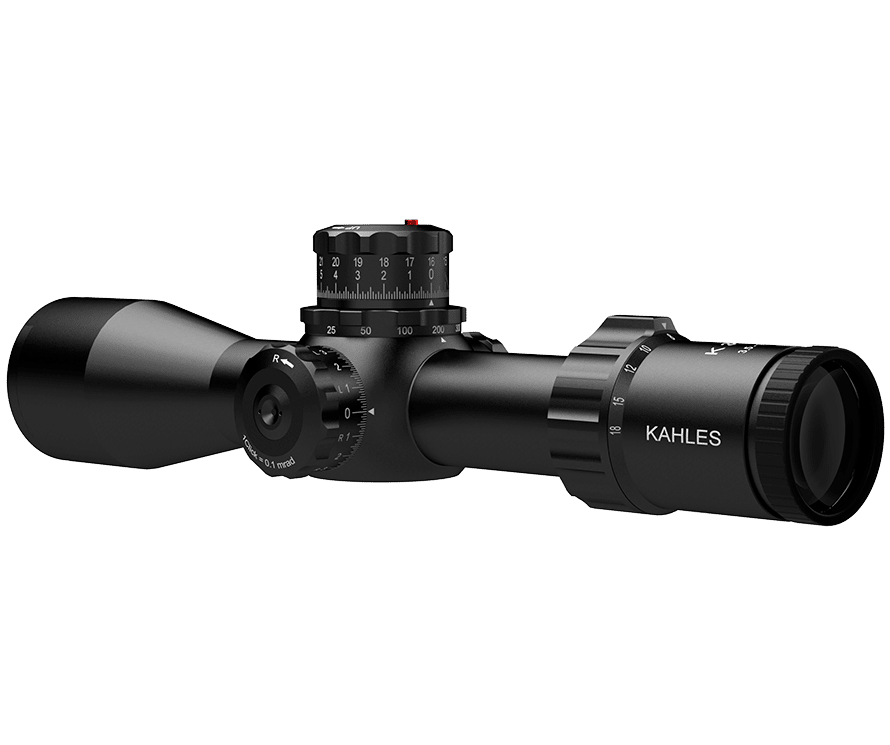

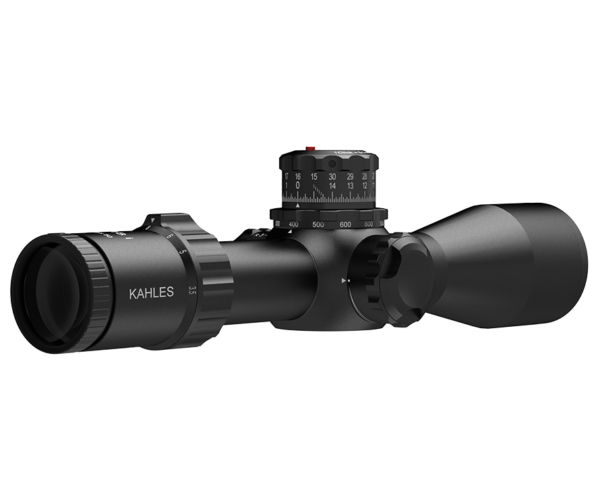

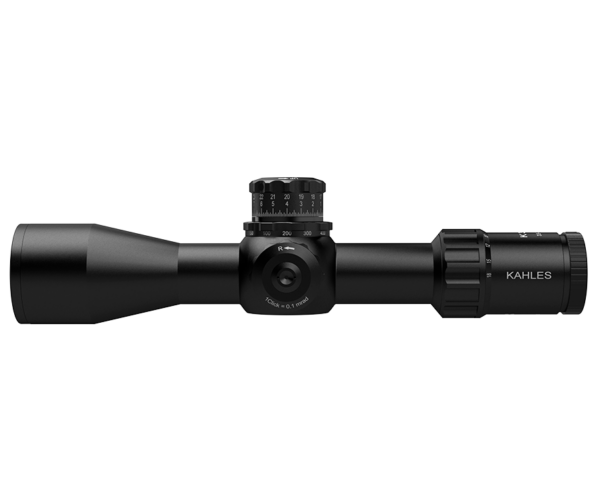

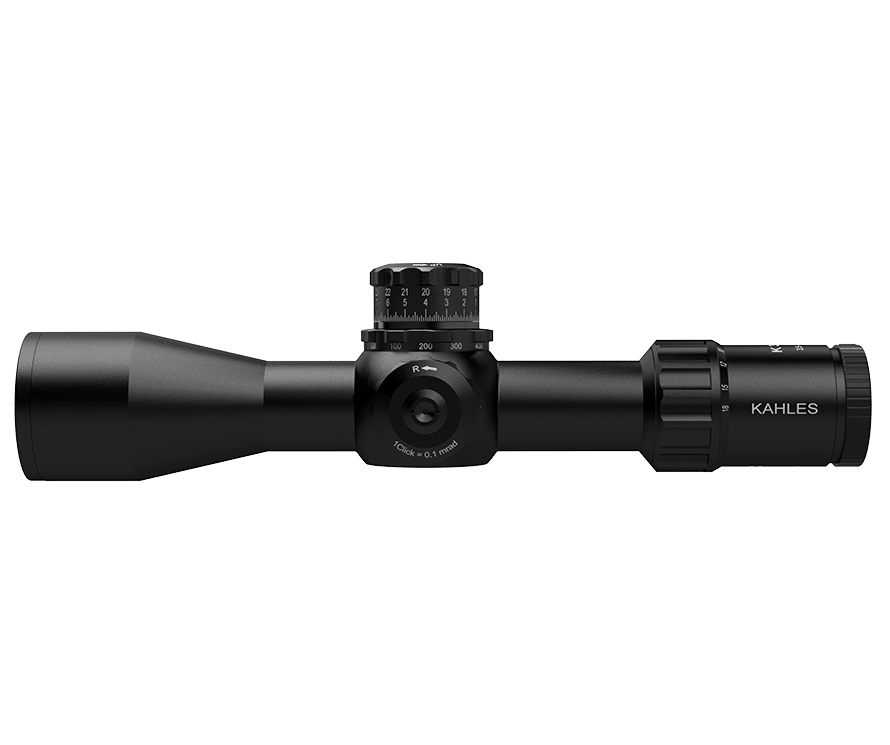

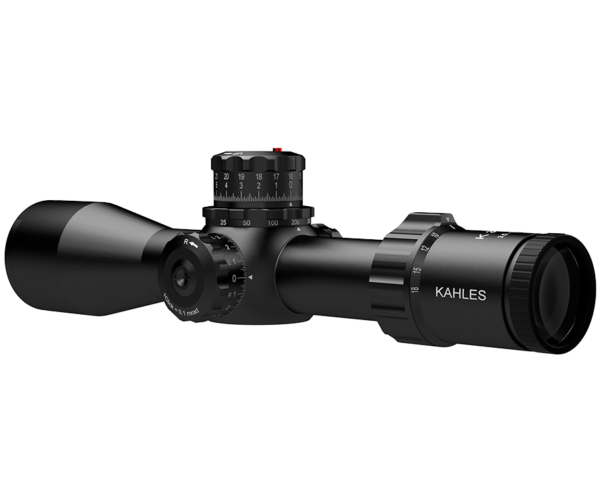

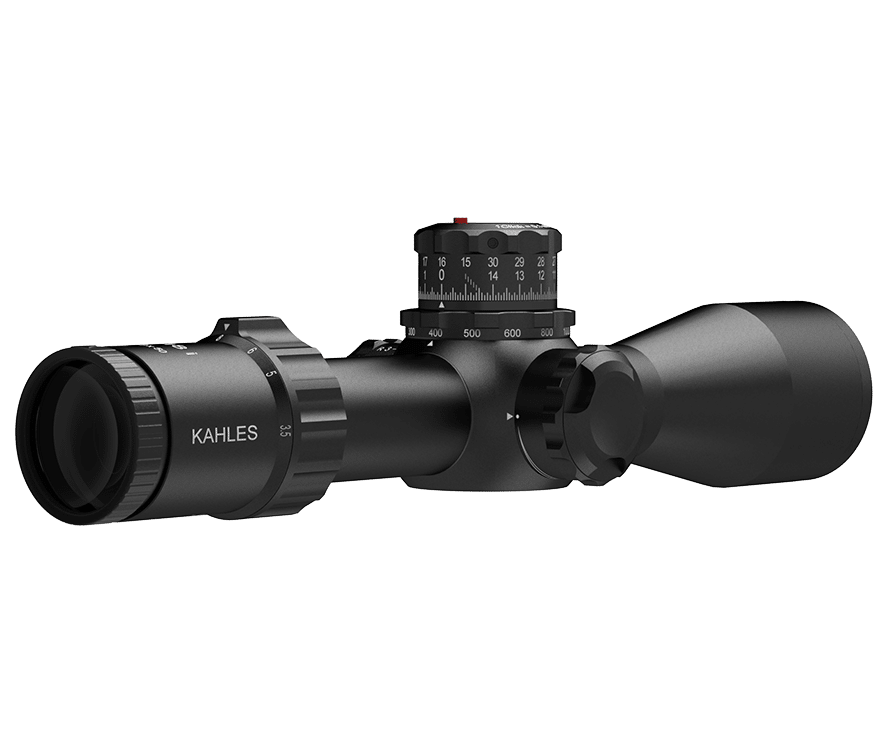

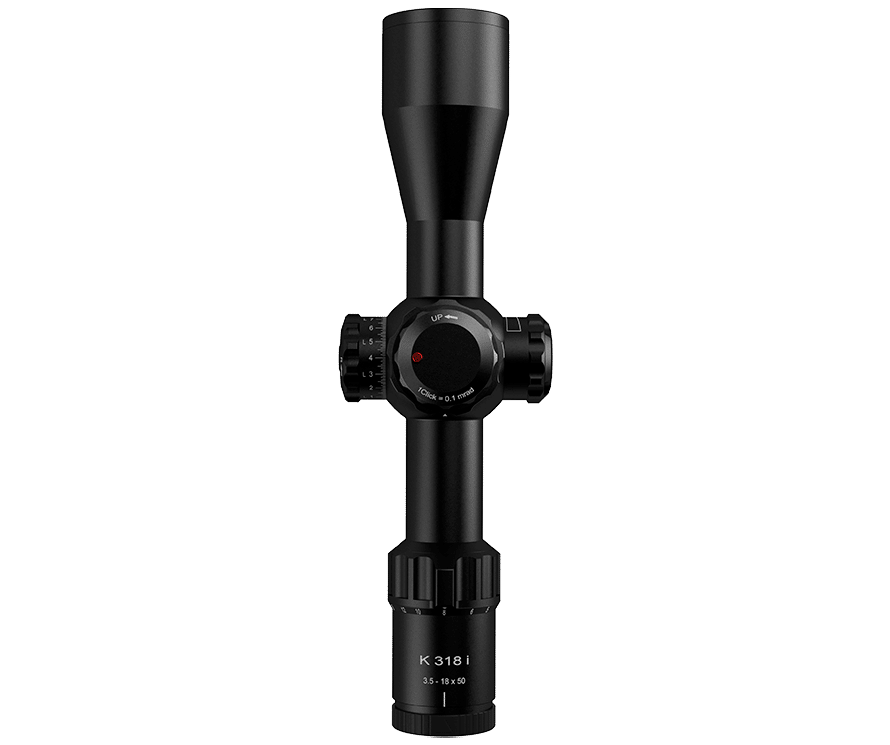

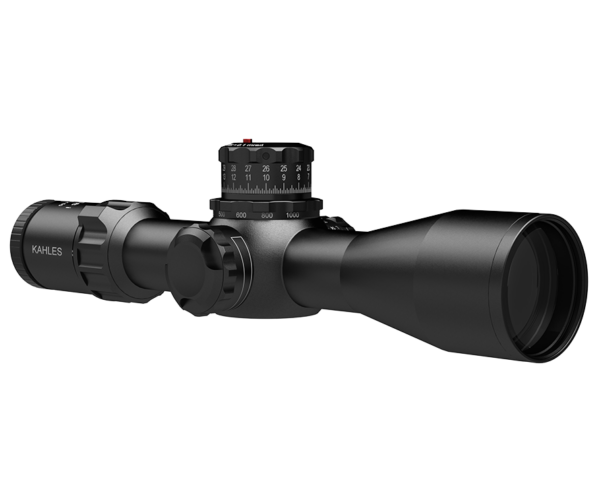

The K318i means optical and mechanical perfection packed into an ultrashort design. With precise illuminated reticles in 1st focal plane, sharply defined throughout the entire magnification range and the unique TWIST GUARD windage.
- Ultrashort and lightweight riflescope with wide field of view and high contrast image
- Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
- Optional left or right side windage
- Innovative TWIST GUARD windage (patented)

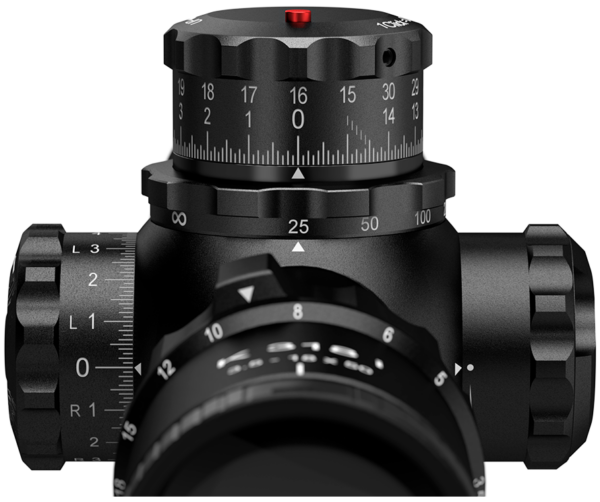

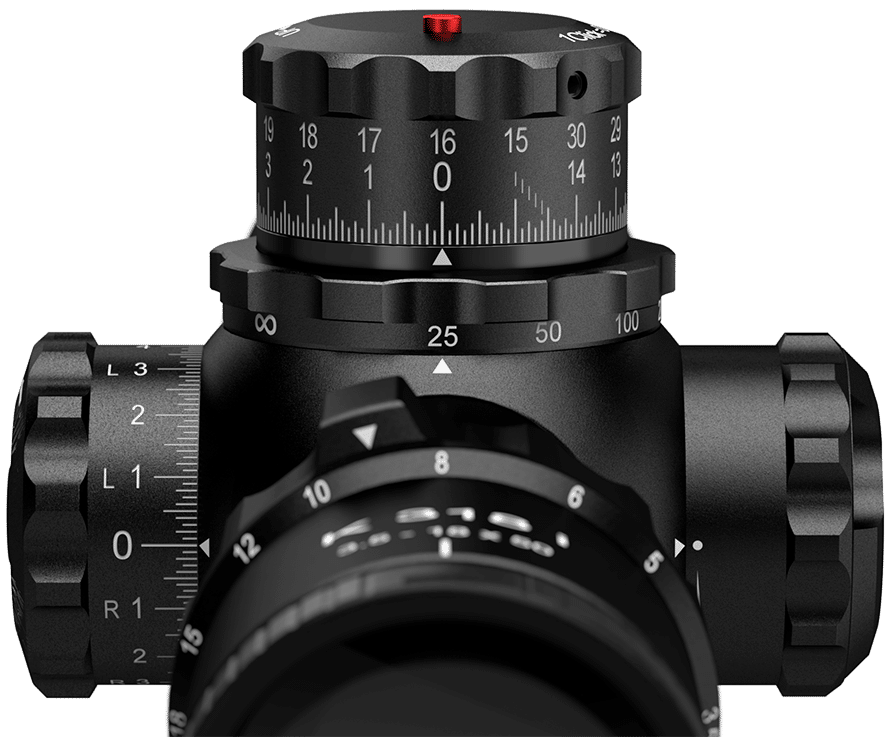

- Parallax wheel integrated into the elevation turret (patented) (25 m to ∞)

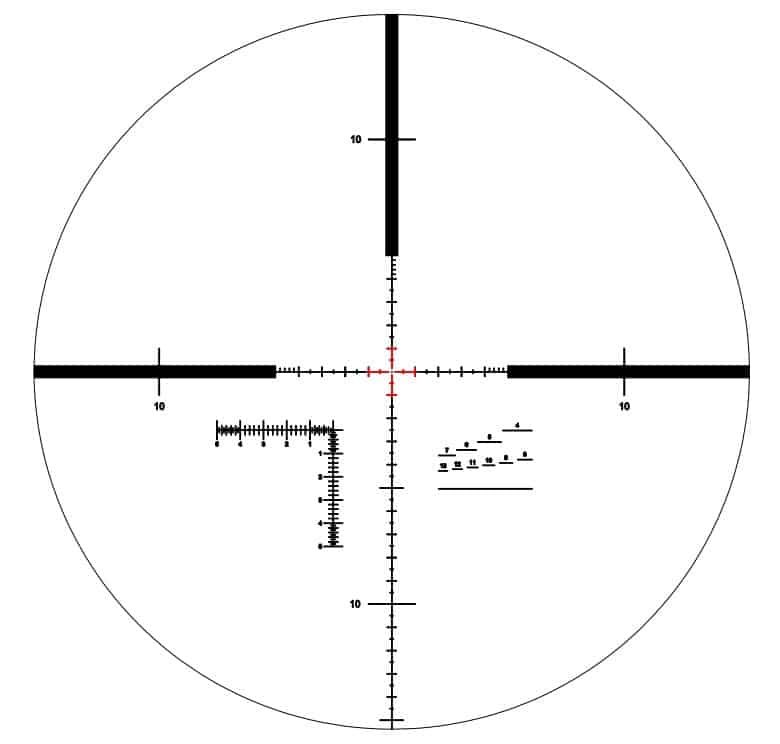

- Precise illuminated reticles in 1st focal plane
| Magnification: | 3.5 – 18 |
| Objective lens diameter: | 50 mm |
| Exit pupil: | 6.9 – 2.8 mm |
| Eye relief: | 92 mm |
| Field of view: | 9.3 – 2.0 m/100 m |
| Diopter compensation: | +2.5 / -3.5 dpt |
| Twilight factor (DIN 58388): | 13.2 – 30.0 |
| Impact correction per click: | .1 MRAD |
| Adjustment range (E/W): | 3.0 / 1.5 m/100 m |
| Parallax adjustment: | 25 m till ∞ |
| Tube diameter: | 34 mm |
| Length: | 313 mm |
| Weight: | 940 g |
| Focal plane: | 1 |
| Illuminated: | Yes |
| Warranty: | 10 years |
