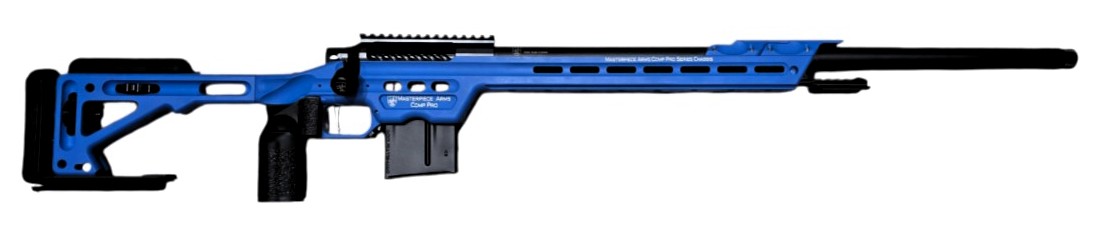

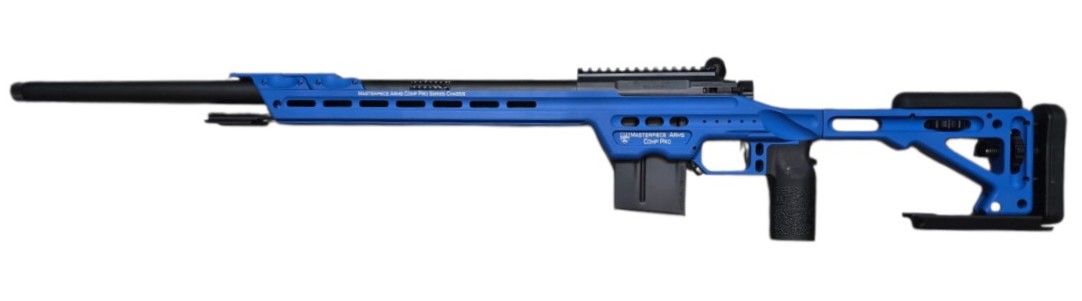

MPA PMR Pro II Rifle – 6.5 Creedmoor

• Calibre: 6.5 Creedmoor
• Action: Short Action, Right Hand
• Barreled Action Finish: Black Cerakote
• Barrel: 26″, MPA Match contour, 5/8×24 muzzle thread

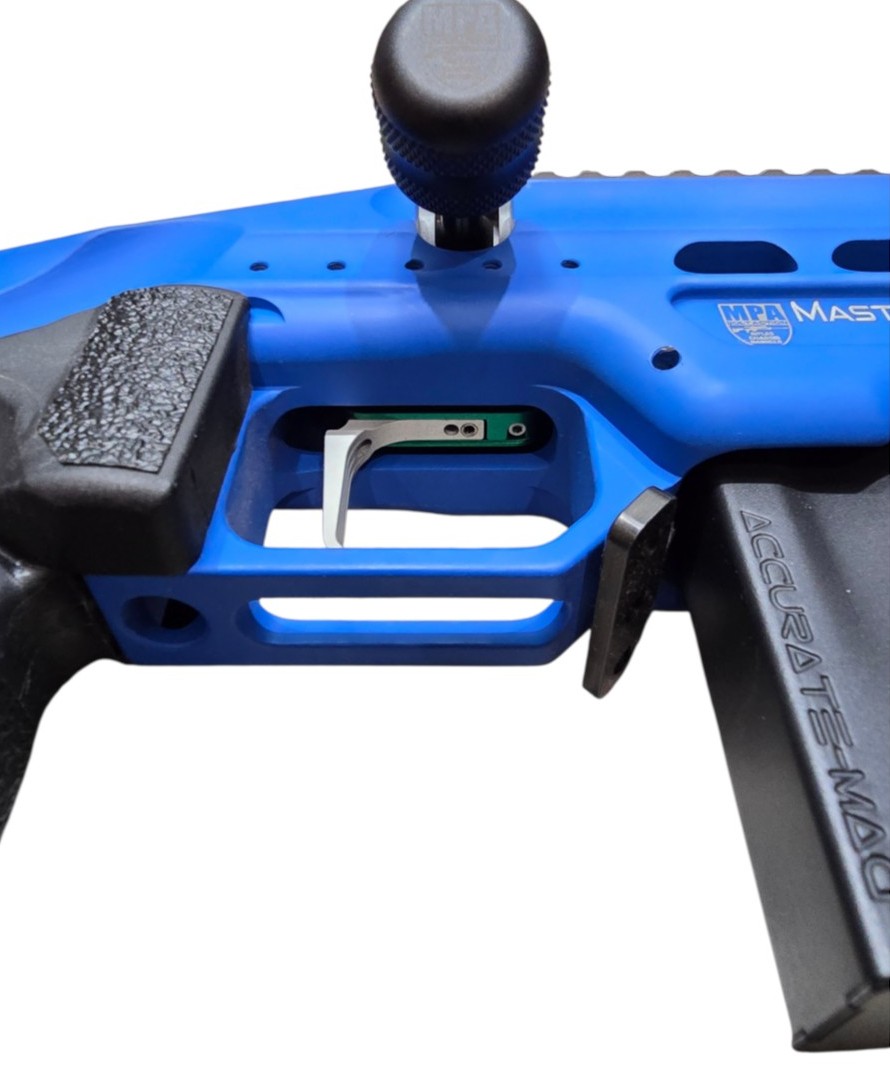

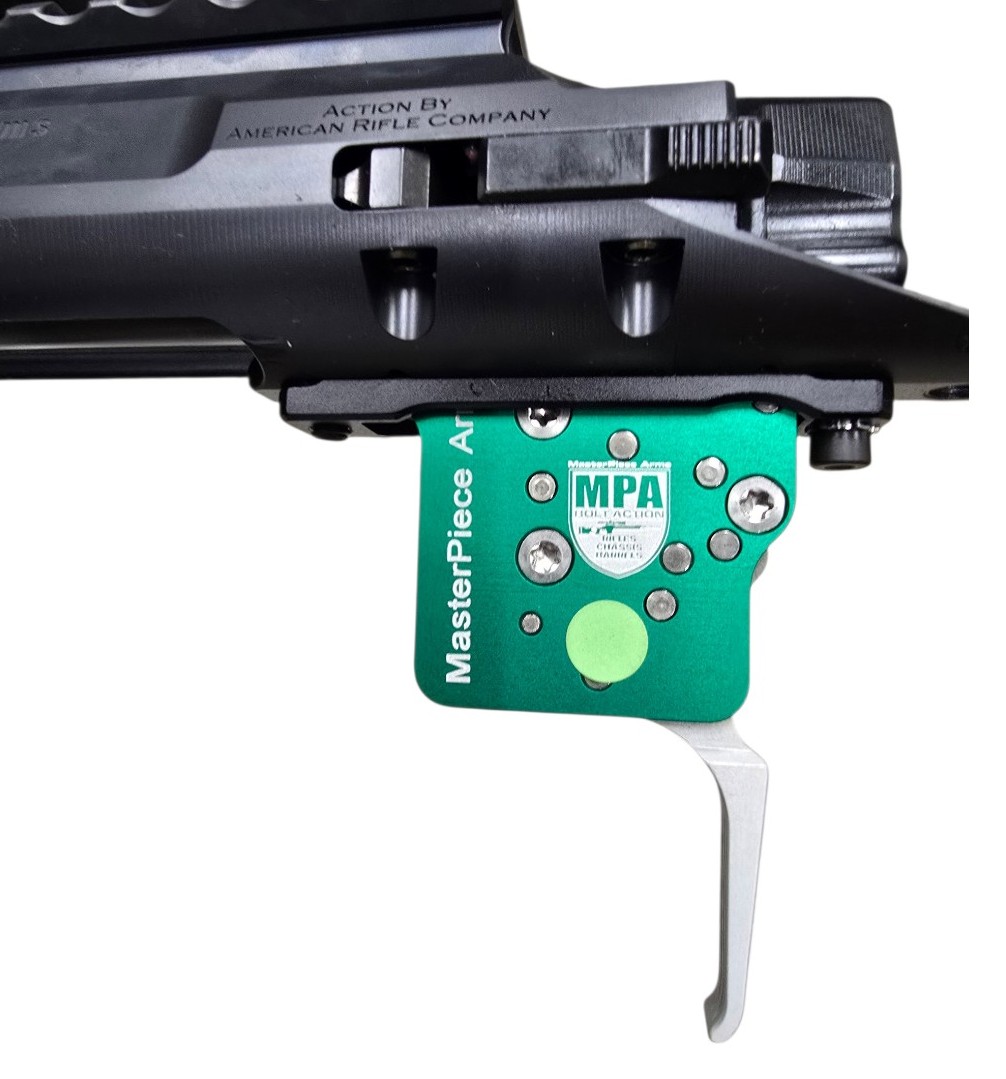

• Trigger: MPA-branded trigger made by Bix’n Andy (Tac Sport Pro X Single Stage)

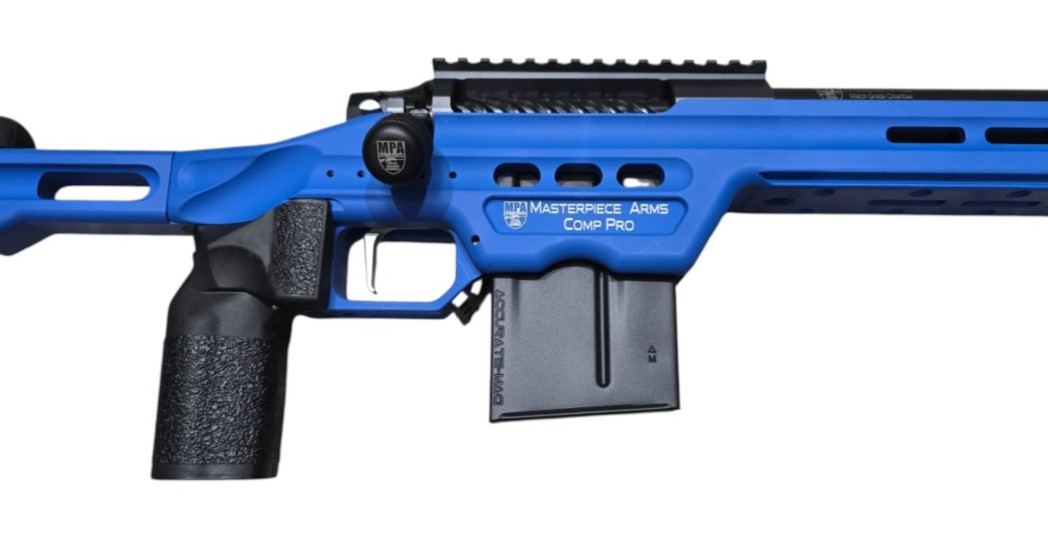

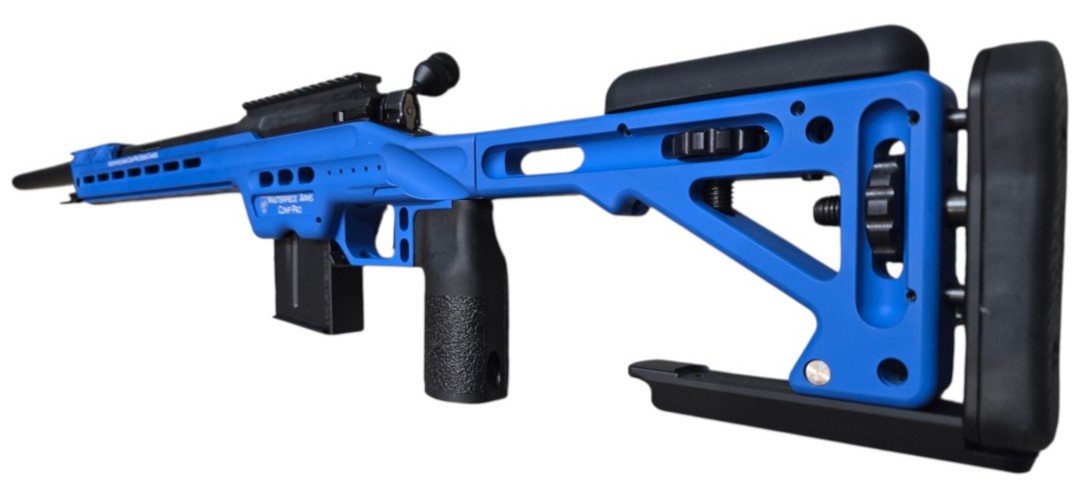

• Chassis: MPA ESR Chassis – R700 SA, NRA Blue

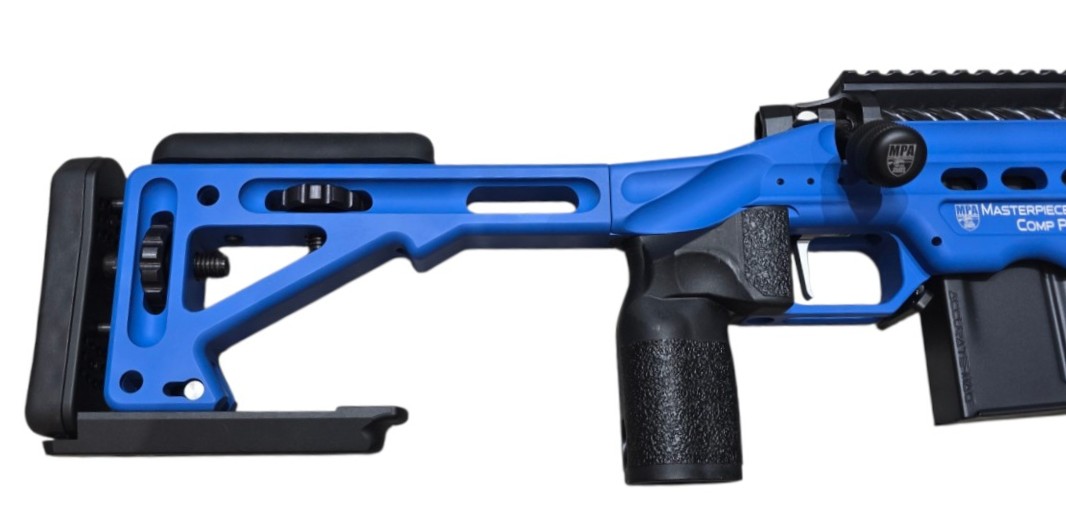

• Stock: Non-Folding
• Bag Rider: MPA Ultra Bag Rider 2″

Barreled Action

The MPA Elite barreled action includes the MPA Elite Action, built by American Rifle Company (Coup de Grace Action), with an MPA hand-lapped, hand-chambered match grade barrel.

Receiver

• Remington 700 footprint
• Integral recoil lug
• Integral 20 MOA scope base
• 1.0625-20 UN 2B barrel thread
• Screw-adjustable trigger hanger
• AICS compatible
• Robust, 9 o’clock bolt release
• Receiver-mounted passive (mechanical) ejector
• DLC finish

Bolt

• Tool-less bolt assembly
• 3-lug interchangeable floating bolt heads
• 70° bolt rotation
• Controlled-round-feed extractor with ability to push/single feed
• Fixed bolt handle
• Dual cocking cams
• Toroidal bolt-lug bearing surfaces
• Standard 5/16-24 UNF 2A bolt knob thread
• Black nitride finish

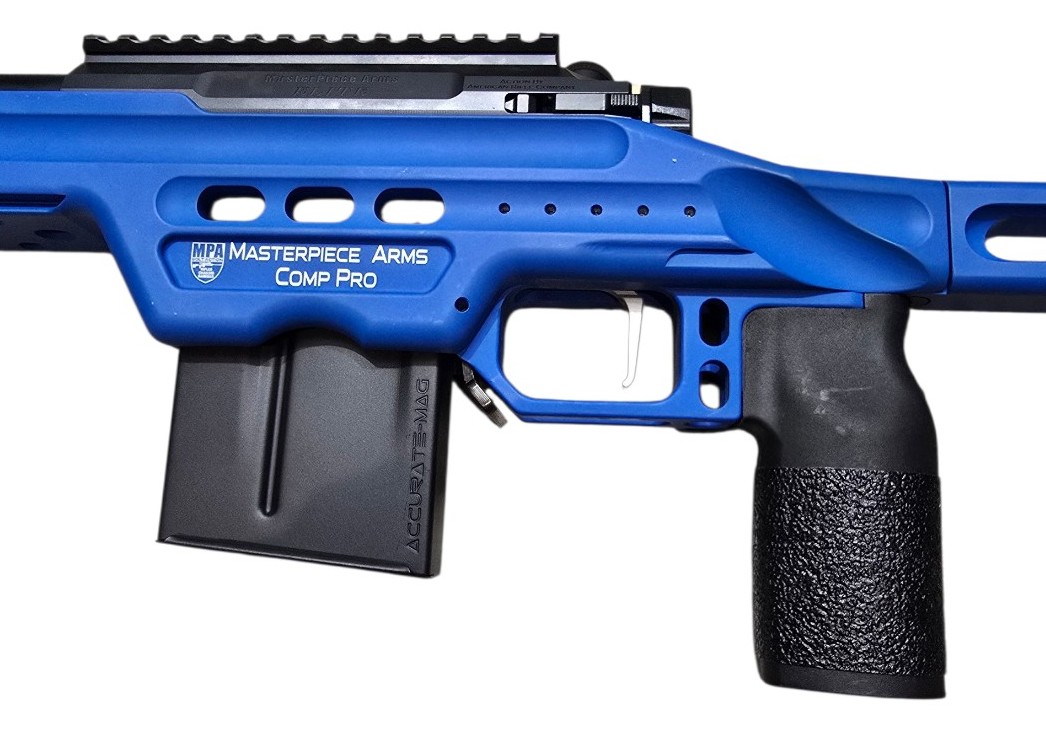

Chassis

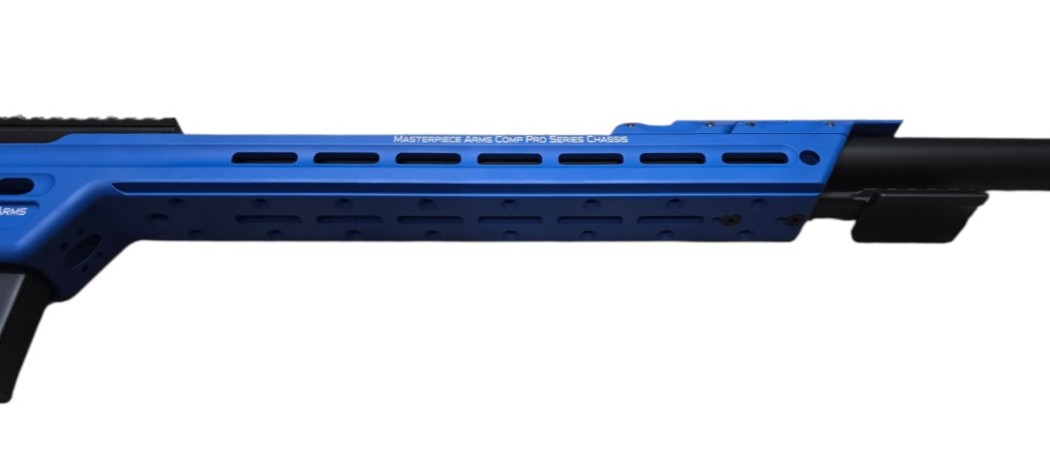

The MPA ESR Chassis was designed as a submission for a recent military program, meeting the chassis specs as required. M-LOK slots run along the sides and bottom of the fore-end, with an additional 2″ of length to the fore-end.

• Machined from 6061 aluminium billet
• MPA RAT System – Rapid Adjustment Technology – 1.5″ Acra Rail built into the chassis

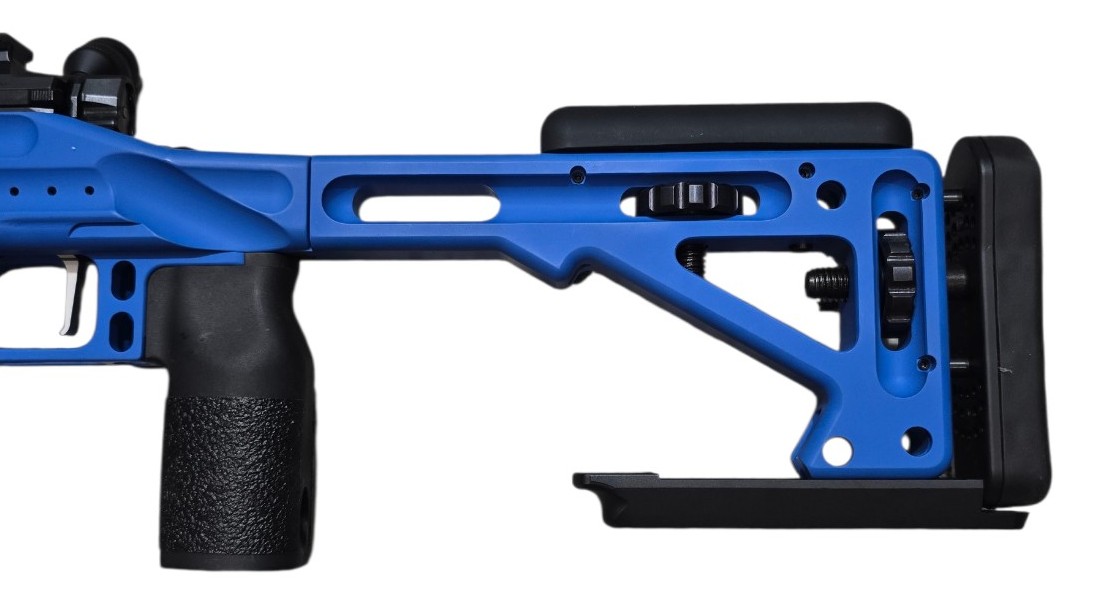

• Adjustable length of pull: 12.75″ to 14″ (can be reduced to 12.5″ on request, additional fee may apply)
• Durable Cerakote finish – NRA Blue
• MPA Ultra Bag Rider 2″
• V4 Spigot Mount (Picatinny rail and dovetail plate built in)
• Takes any AICS-type magazines (magazine not included)

Chassis Specifications

• Magazine compatibility: AICS and AW (Short Action)
• Fore-end length: 14.25″
• Overall length: 36.5″
• Max barrel diameter: 1.250″ (barrel channel: 1.295″)
