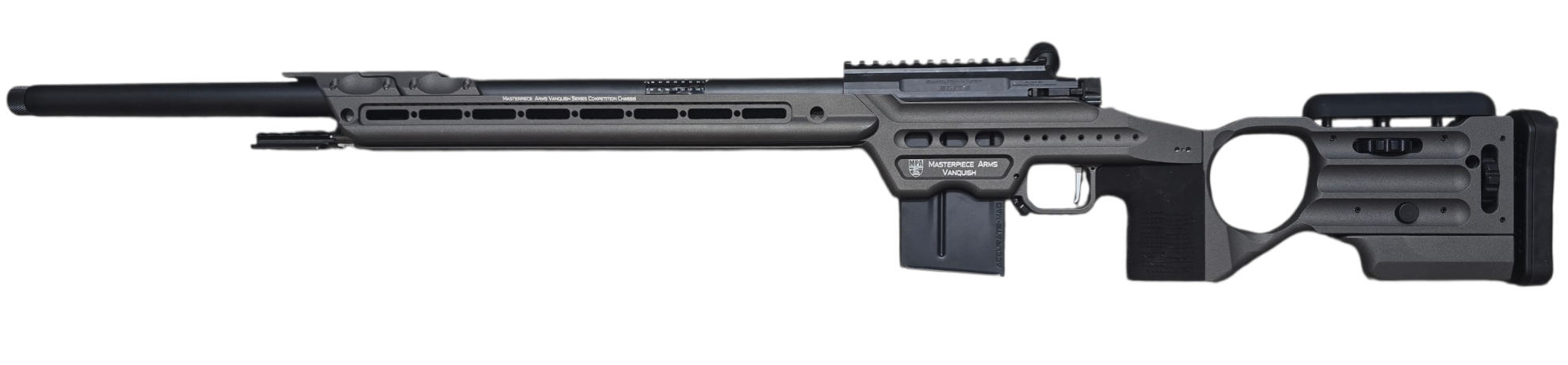

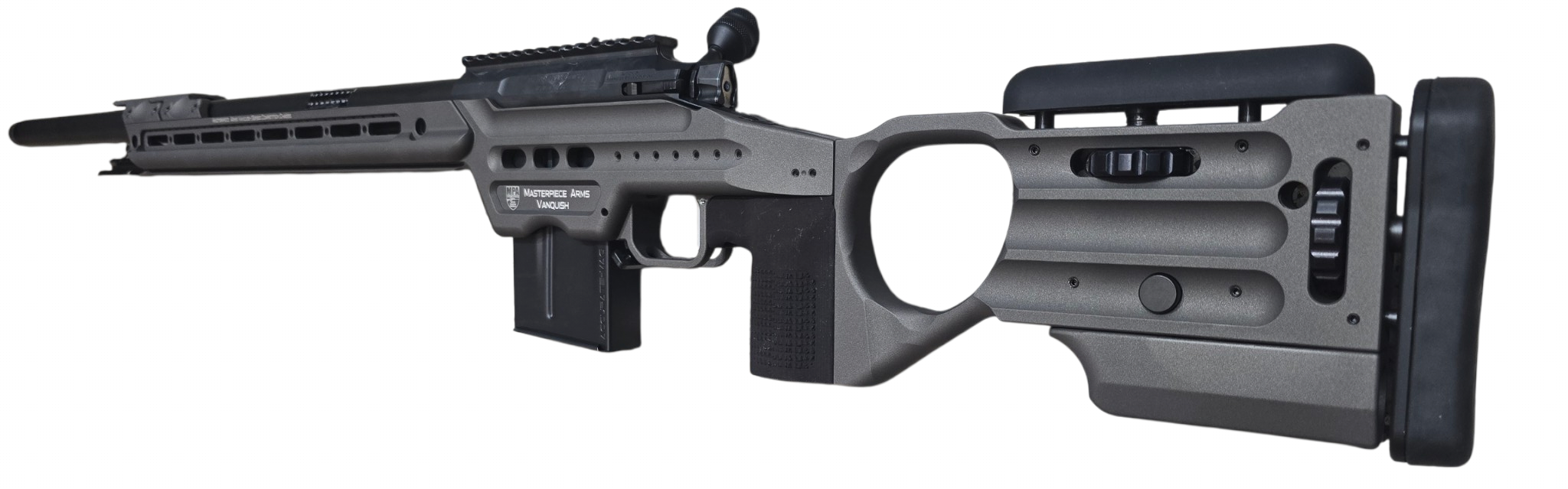

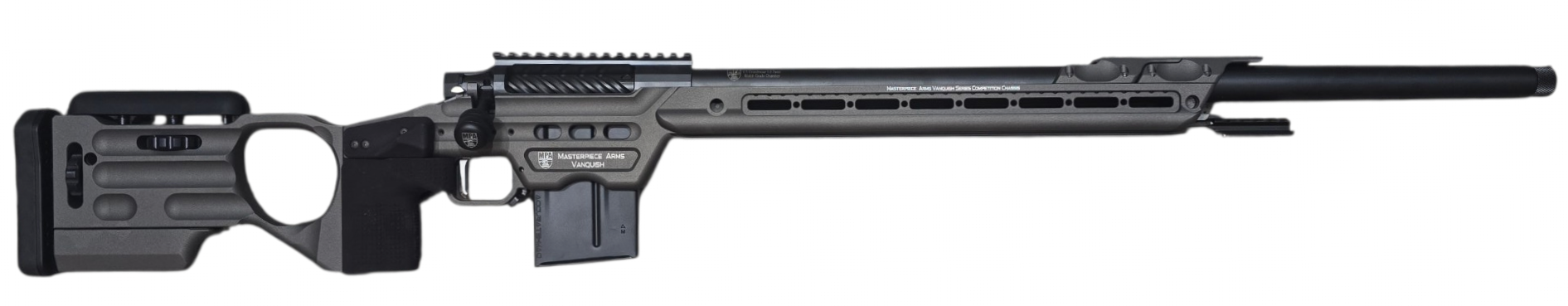

Vanquish PMR Rifle – 6.5 Creedmoor

Masterpiece Arms builds world class rifles. Starting with their industry-leading chassis system, the best actions and triggers produced, and MPA/Spencer 416R hand-lapped barrels, the Vanquish PMR Rifle is designed, built and enhanced by long-range shooters and hunters to fulfil the needs of the most discerning shooters.

This Build

• Calibre: 6.5 Creedmoor
• Action: Short Action, Right Hand
• Action & Barrel Finish: Black
• Barrel: 26″, MPA Match contour

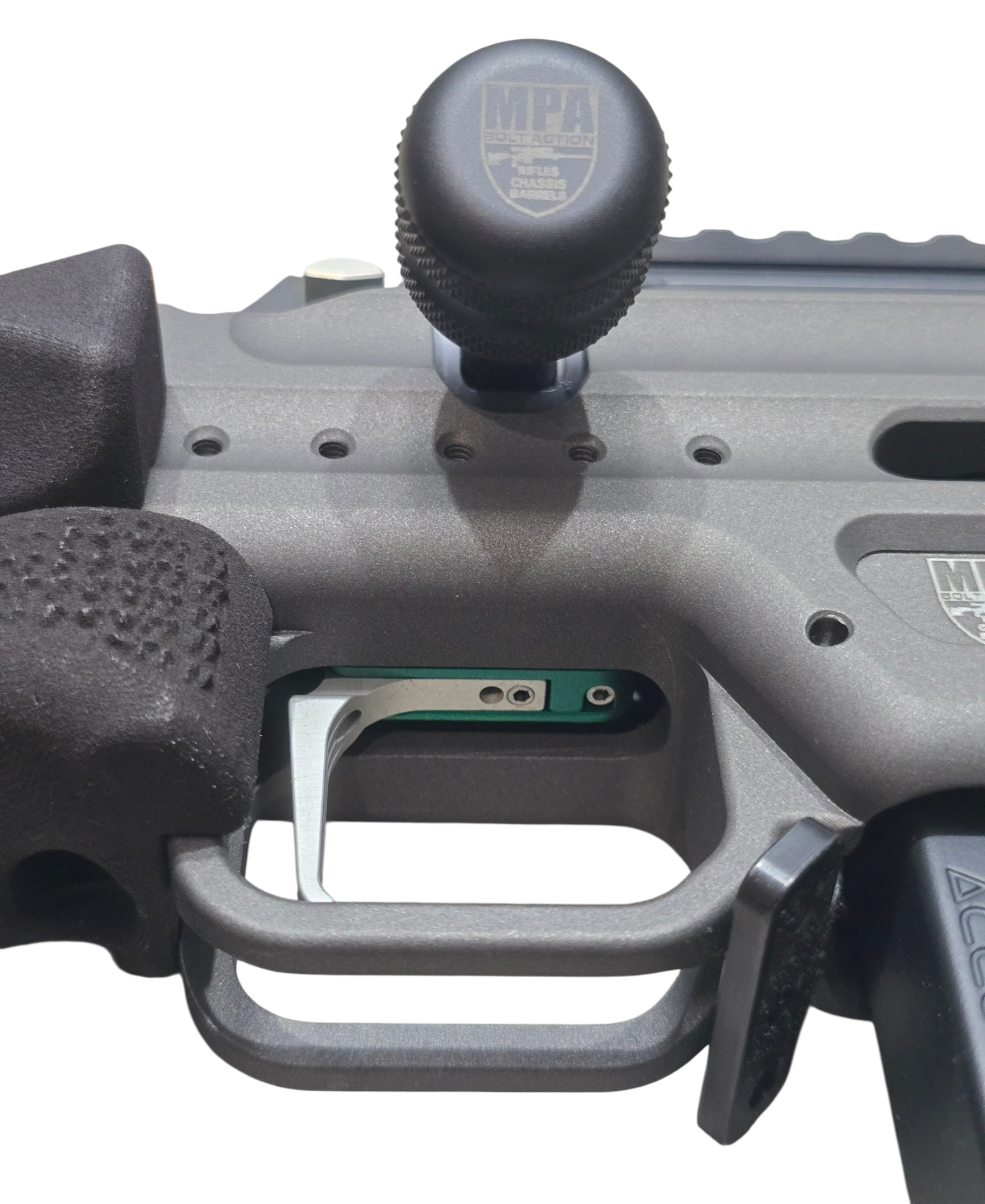

• Trigger: MPA-branded trigger made by Bix’n Andy (Tac Sport Pro-X Single Stage)
• Chassis: MPA Vanquish Chassis – Tungsten
• Buttstock: Standard
• 2 Nesting Bridge sections, with tape

Action

• MPA Short Action (ARC MPA Elite)
• Wire EDM bolt lug raceways
• Integral lug and scope base
• Adjustable trigger hanger
• 3-lug head
• Integral 20 MOA scope rail
• Quick-release firing pin assembly removal system (tool-less)
• Three-piece bolt design (bolt, lugs and handle)
• Spiral fluting
• Black nitride coating
• Mechanical extractor

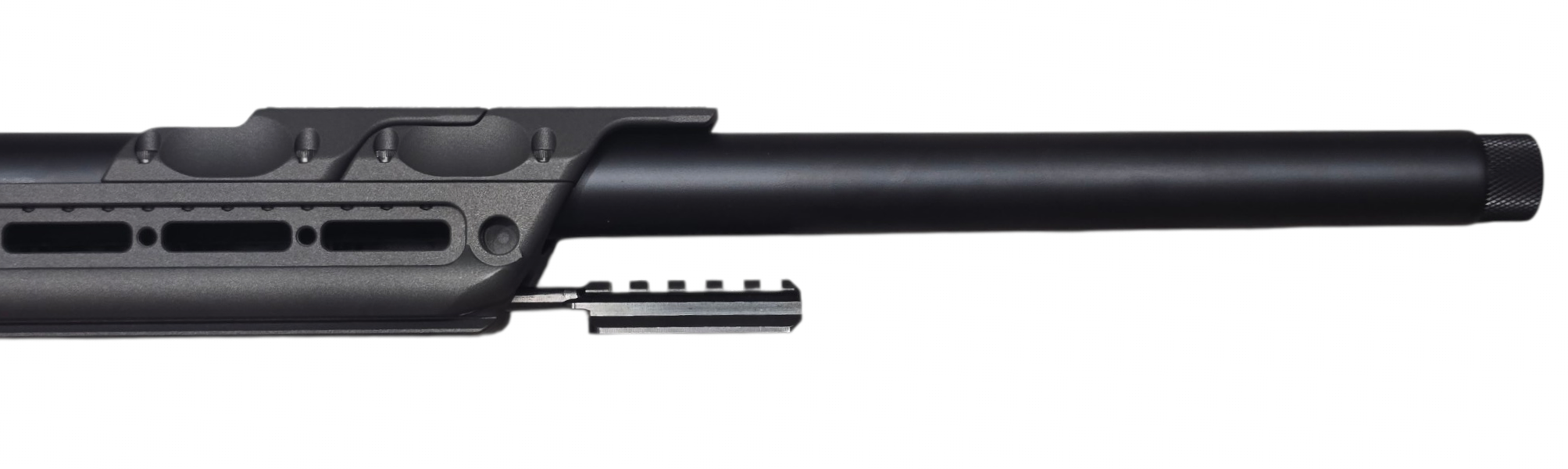

Barrel

• 416R stainless steel
• Precision gun drilled, reamed and honed
• Pull button rifled
• Stress relieved
• Hand lapped
• Bore and land inspected on video borescope
• Sheffield air gauge inspection to .0001″ on bore and rifling land variation
• Chamber indicated within .0001″ or less to the bore of the rifle
• Muzzle thread 5/8×24

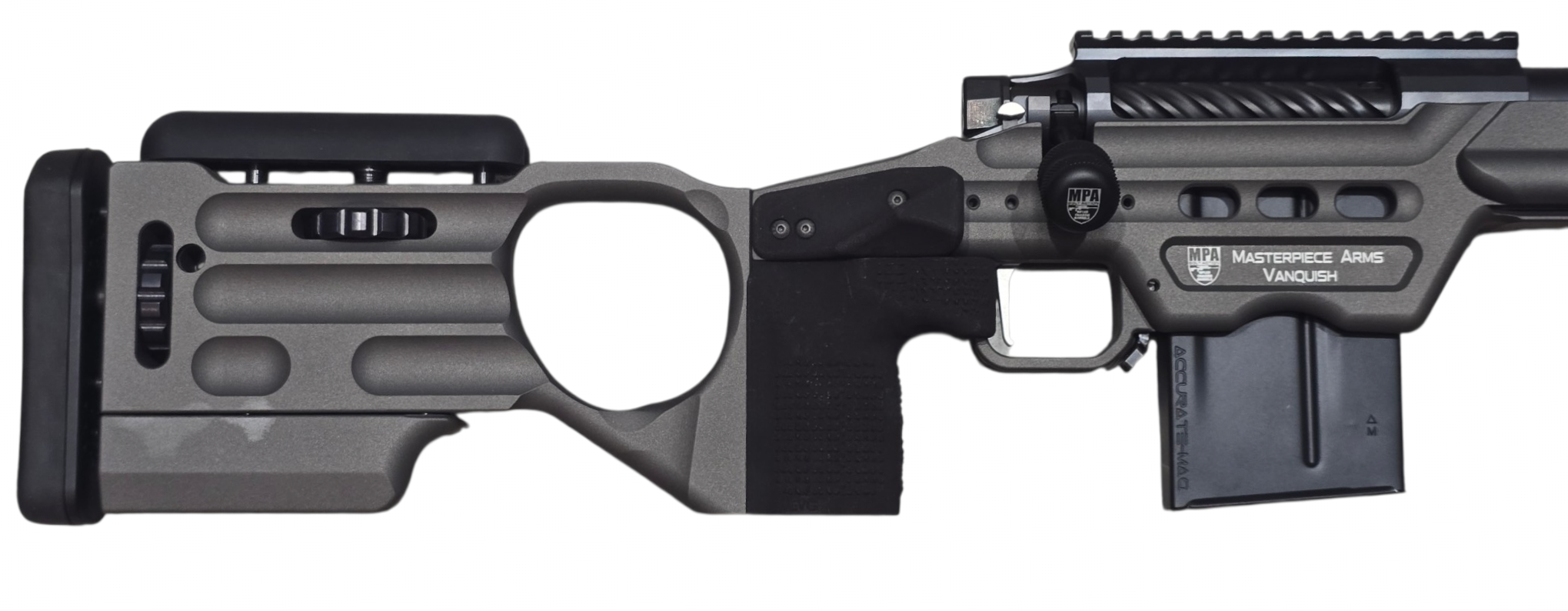

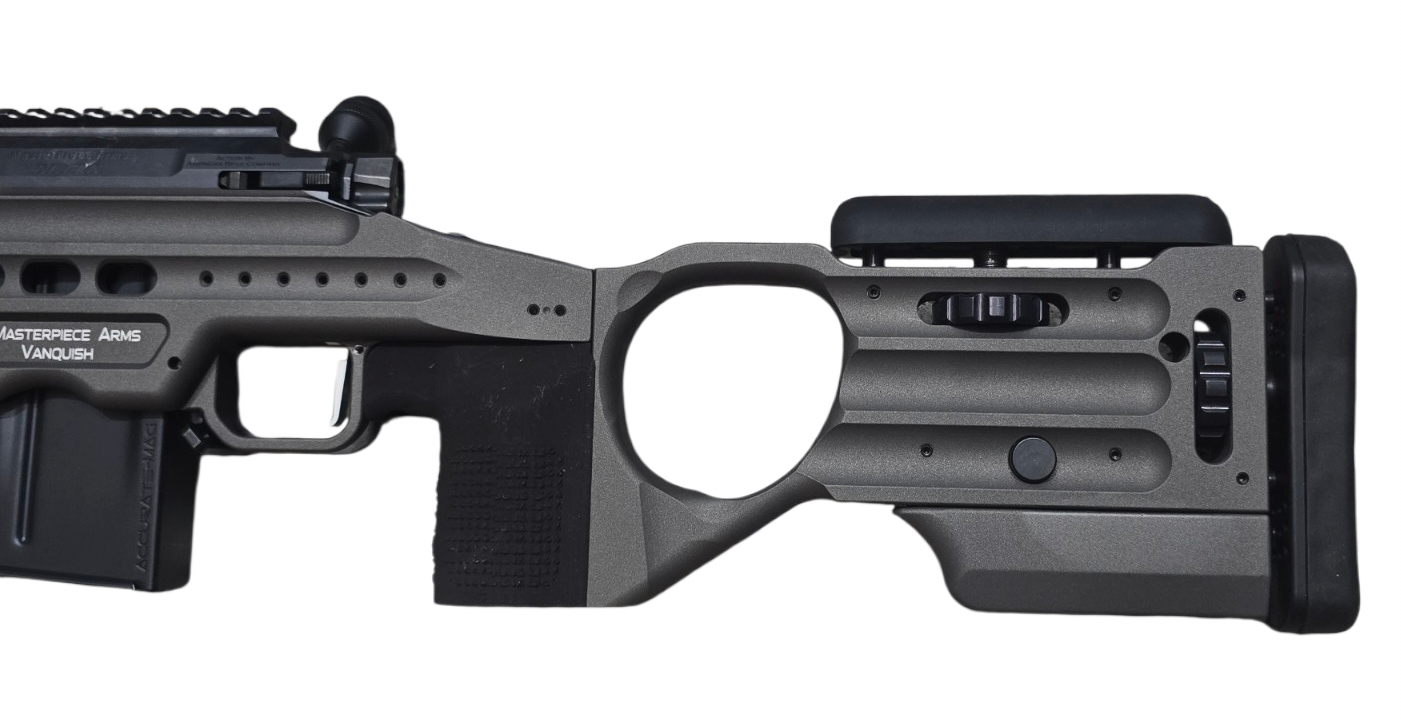

Chassis System

• MPA Vanquish Chassis
• Masterpiece Arms Matrix Pro II buttstock with drop-down bag rider
• Magwell plate system ready
• Produced from 6061 aluminium
• V-bedding system with additional clearance for glass bedding the action and straight section of barrel
• MPA Matrix with adjustable cheek riser and length of pull
• Built-in bag rider with butthook
• 2 nesting bridge sections
• Steel spigot mount (Picatinny rail and ARCA Swiss rail)
• Cerakote finish – multiple colours available
• Built-in inclinometer levelling system
• Matrix EVG grip (alternate grips additional)
• Thumb notch
• R.A.T. System compatible

Thread Protector

MPA muzzle thread protector included.

Accuracy

1/2 MOA or better.

Rifle Case

Plano basic rifle case included.

Specifications

• Total rifle weight: 16.5 lbs with 26″ MPA Match barrel (excludes ammo, bipod, magazine, optic)
• Barrel: 416R stainless steel, hand-lapped
• Action: MPA Elite (ARC)
• Chamber: zero-runout chambering method
• Muzzle threads: 5/8×24
• Brake: not included
• Chassis type: Vanquish
• Chassis colours: Black or Tungsten
• Chassis material: 6061 aluminium billet
• Chassis coating: H-Series Cerakote
• Magazine: Accurate Mag 10-round (308)
• Chassis weight: 7.12 lbs (standard buttstock)
• Barrel profile: MPA Match contour
• Barrel length: 26″
• Adjustable length of pull: 12″ to 13.5″
• Cheek riser: adjustable
• Recoil plate: adjustable for height and cant
