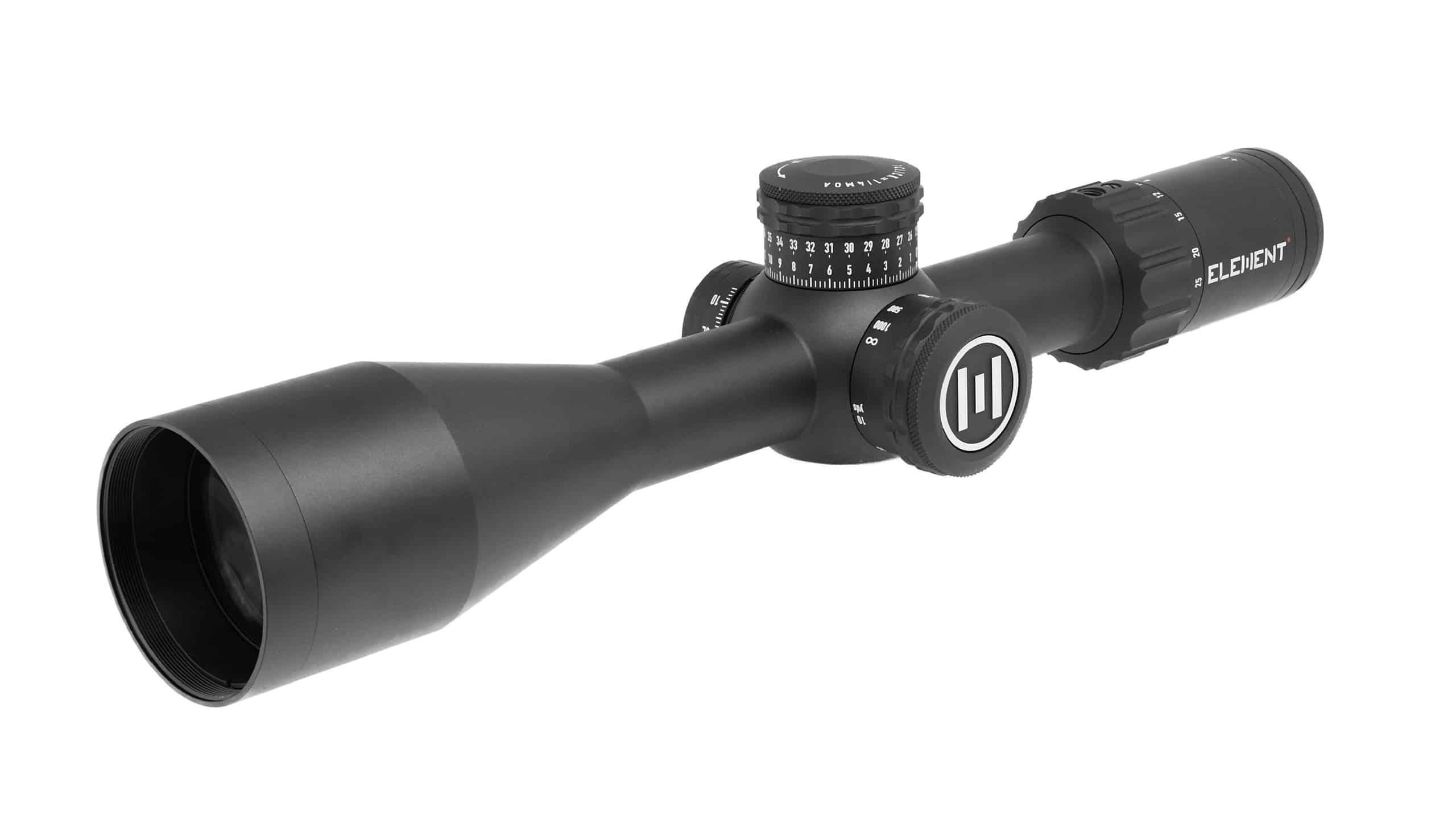

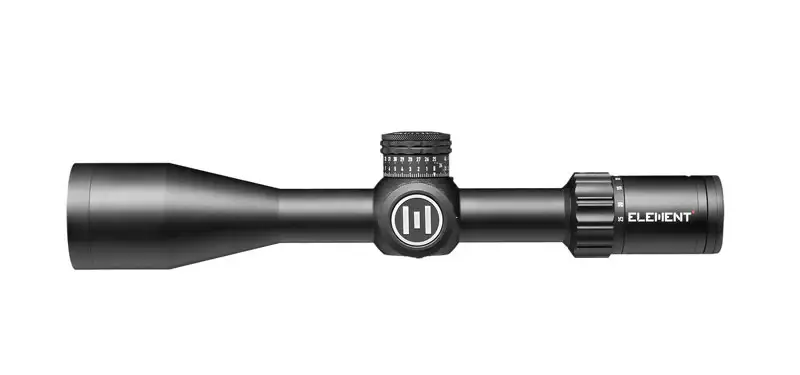

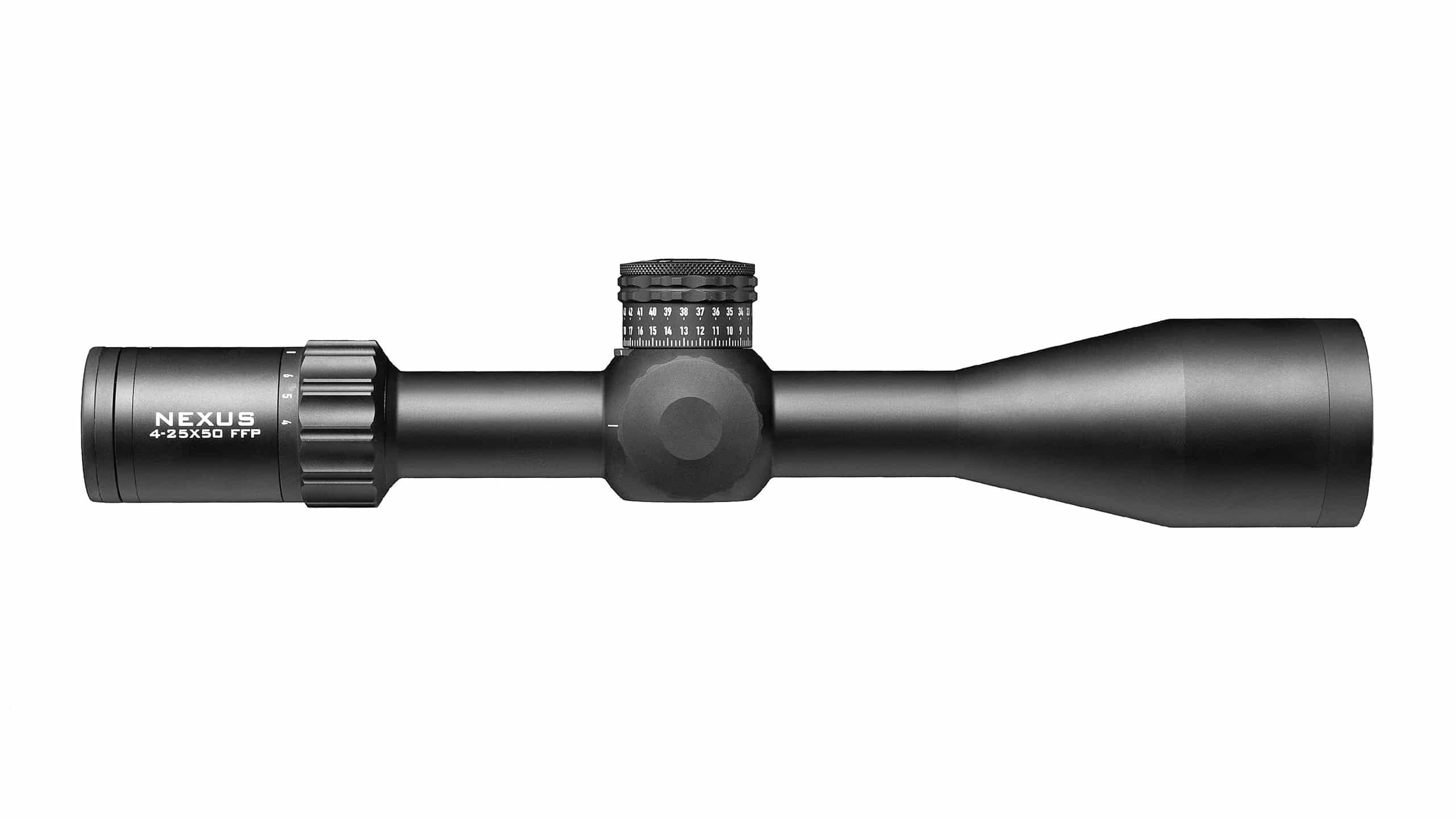

The GEN 2 takes the DNA of the first generation NEXUS and pushes it to another level with a 4-25x Magnification, a new Turret System and Digital Illumination – the ultimate 30mm riflescope. A variety of different reticle designs in both MOA and MRAD cater to all shooters: simplified options are easy on the eye, while more complex designs allow experienced shooters to hold off with precision.
Element Optics’ design team of global competition winners & hunters understand optics and have introduced strict quality control measures to ensure perfect operation under testing conditions.
FEATURES
- 30mm Main Body Tube
- Compact, Lightweight design
- Illuminated, First Focal Plane Reticle
- Side Parallax: 10yds-Infinity
- Advanced Fully Multi-Coated Lenses with Anti-Fouling Layer

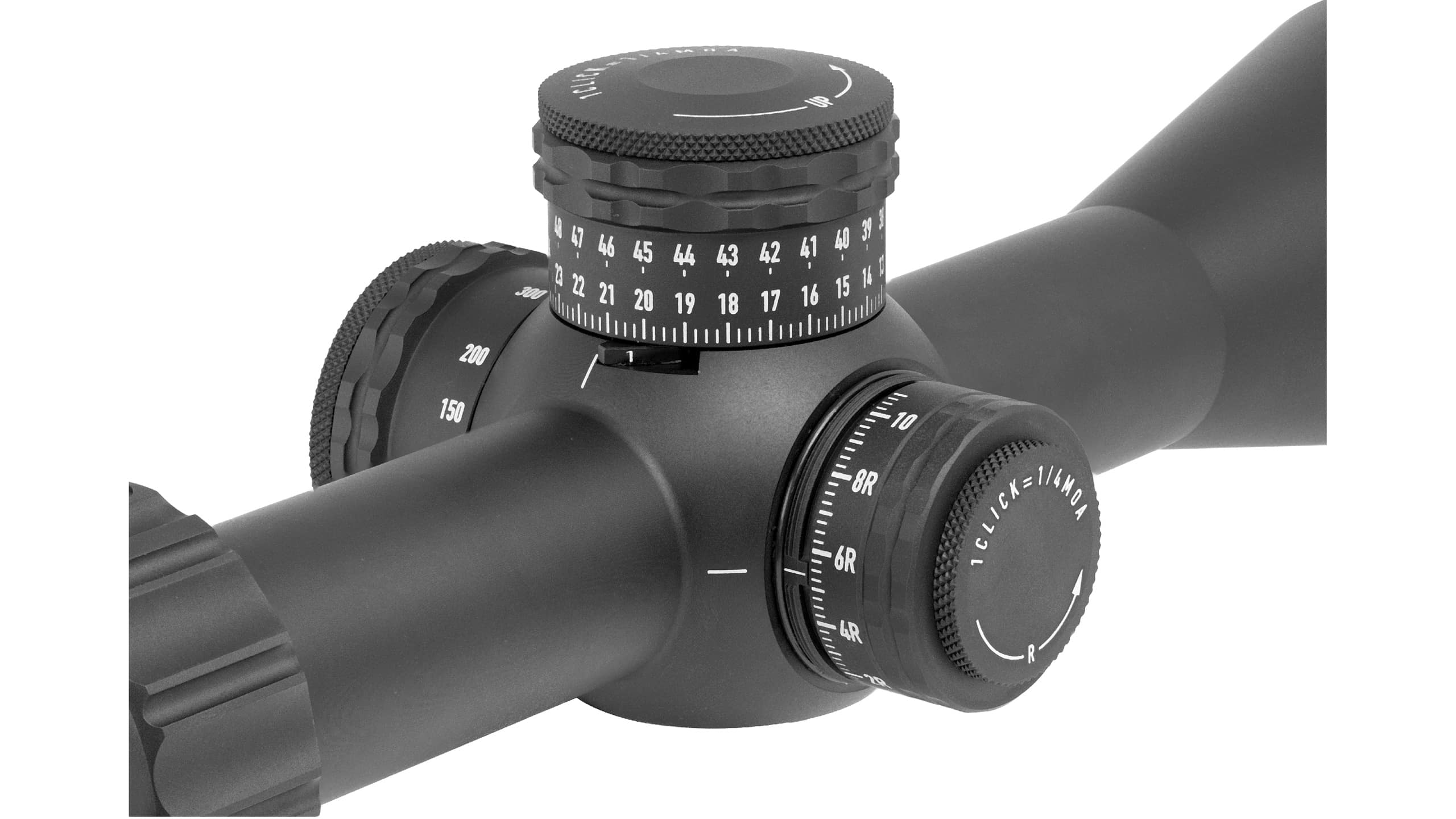

- Tool-free Resettable Turrets with 10 MRAD / 25 MOA per Revolution
- Revolution Indicator
- Tool-Free Mechanical Zero-Stop
- Push-Button Illumination
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Aperture Ring & Neoprene Cover included
| MAGNIFICATION RANGE | 4-25x |
| TUBE DIAMETER | 30mm |
| OBJECTIVE LENS DIAMETER | 50mm |
| EXIT PUPIL | 7.1-2.0mm |
| EYE RELIEF | 77-92mm |
| FIELD OF VIEW | @100yds: 29.2-4.7 ft | @100m: 9.7-1.6m |
| CLICK VALUE | 1/4 MOA (20 MOA / REV) | 1/10 MRAD (10 MRAD / REV) |
| ELEVATION ADJUSTMENT RANGE | 100 MOA | 29 MRAD |
| WINDAGE ADJUSTMENT RANGE | 40 MOA | 11.6 MRAD |
| MINIMUM PARALLAX | 10 YDS | 10 METERS |
| LENGTH | 13.8” | 350mm |
| WEIGHT | 30.7oz | 870gr |
