SHV F1 – 4-14×50

$1,690.00 Inc. GST

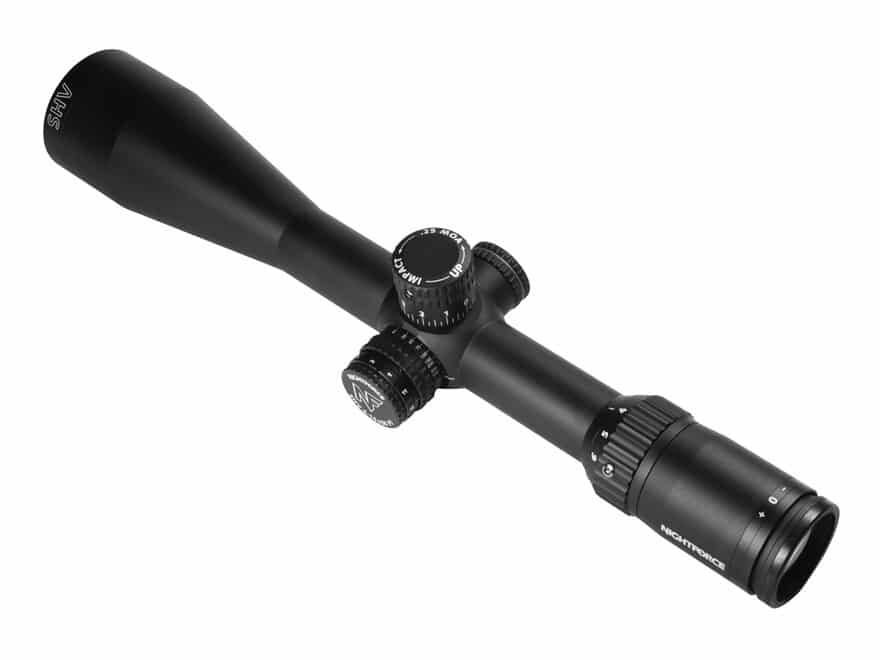

New first focal plane SHV™ 4-14 x 50 F1 MIL – R – from Nightforce



SPECIFICATIONS SHV 4-14 x50 F1
Focal Plane First
Magnification Range 4-14x
Objective lens diameter 50mm
Tube diameter 30 mm/1.18 in
Internal adjustment range (Mil) e: 26.2 Mil
w: 20.4 Mil
Click value .1 Mil-rad
Calibrated Ranging Power N/A
Parallax adjustment 25 – ∞
Exit pupil diameter 4x: 10.8 mm
14x: 3.3 mm
Eye relief 70-80 mm/2.8 – 3.1 in
Field of view @100 yards/100 meters 4x: 25.1 ft
14x: 7.4 ft
4x: 7.65 m
14x: 2.26 m
Objective outer diameter 59 mm
Eyepiece outer diameter 43.6 mm
Overall length (inches/mm) 14.8 in/376 mm
Weight (ounces/grams) 30 oz/850g
Mounting length (inches/mm) 6.2 in/157 mm
Front/Rear Mounting Length 2.19 in/55.8 mm
PTL (Power Throw Lever) Accessory
Reticles available MIL-R™
Illumination Standard
Elevation Feature ZeroSet™

Nightforce has announced their first SHV™ riflescope built with first focal plane reticle technology, the SHV™ 4-14 x 50 F1. This is the latest addition to the company’s popular

SHV™ line, winner of two consecutive Outdoor Life Editor’s Choice awards. The new riflescope features intelligent reticles with illumination that turns off between each of 11 brightness settings, allowing the user to pre-select an illumination level appropriate for lighting conditions, turn it off to preserve battery power, then restore it instantly with a oneclick rotation of the dial. This prevents having to cycle through multiple brightness settings, which takes time and can affect the shooter’s night vision. The proprietary Nightforce MOAR™ and MIL-R™ reticles are offered.

The SHV™ 4-14 x 50 includes side parallax adjustment, and offers windage/elevation adjustments in .25 MOA or .1 Mil-Radian increments. It has an exposed elevation turret with Nightforce ZeroSet™, which provides the user with a positive return to their zero point regardless of how many elevation adjustments have been made. The windage adjustment is capped for protection, but the cap can be removed and the windage adjustment used fully exposed. The SHV™ 4-14 x 50 allows 90 MOA of elevation adjustment and 70 MOA windage within its 30mm tube.

“Our SHV™ line has been extremely popular with shooters who demand affordable performance,” said Sean Murphy, marketing project manager, “and the new 4-14x F1 model continues to deliver. Fewer options and a simpler configuration allow us to offer SHV™ models at extremely competitive prices. We created the new 4-14 x 50 F1 to answer customer requests for SHV™ quality and affordability with the unique benefits of first focal plane reticle placement.”

Weight 2.5 kg
Dimensions 60.0 × 20.0 × 20.0 cm
Nightforce Reticle

,
