Timberline Receiver

SKU: Timberline LA Magnum Categories: , , , , Brand:

$2,990.01 Inc. GST

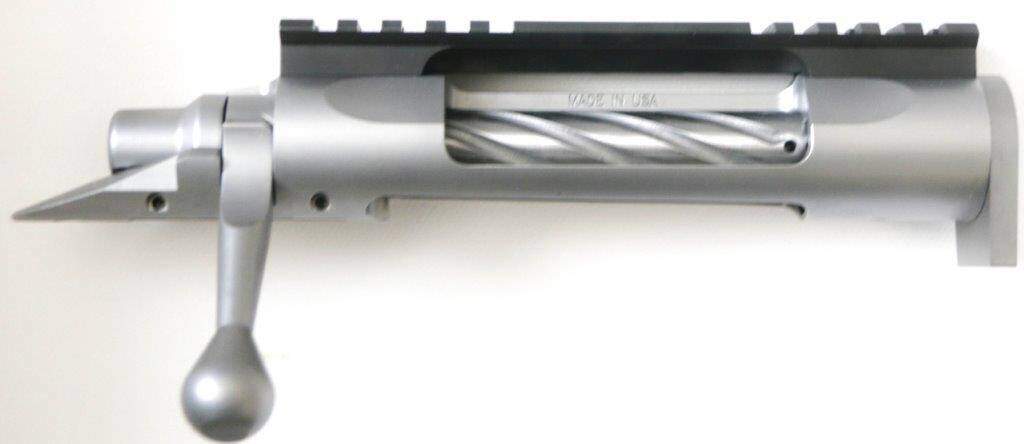

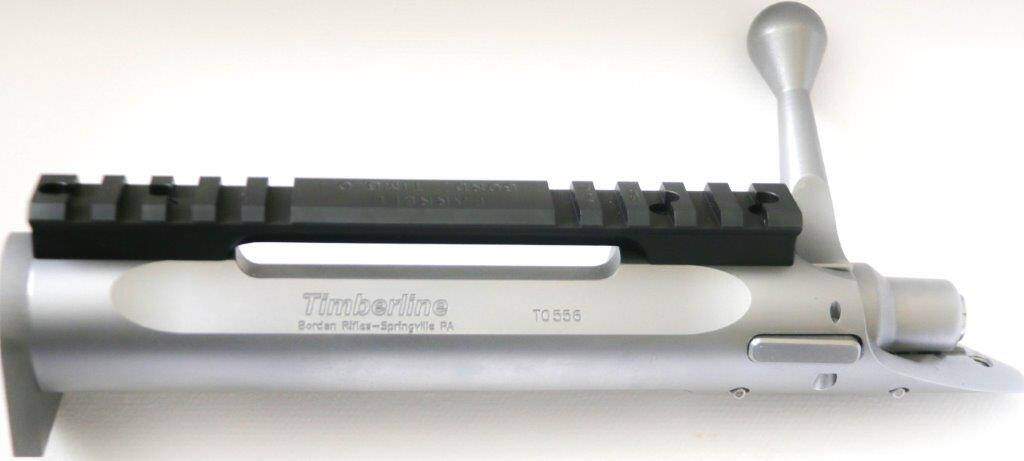

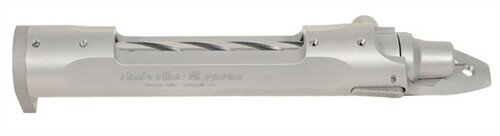

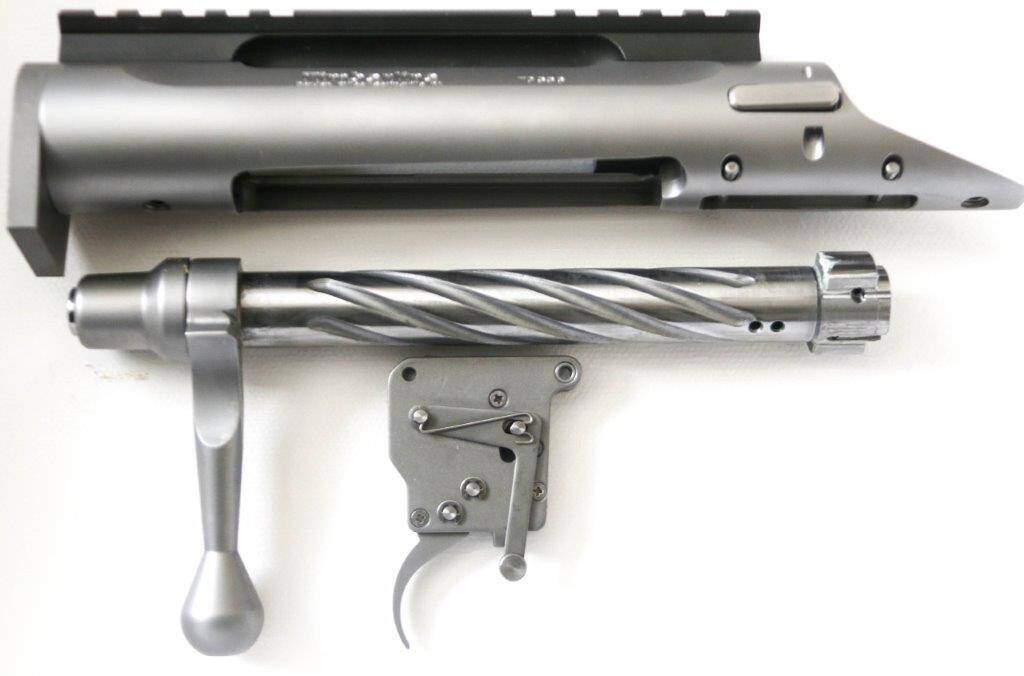

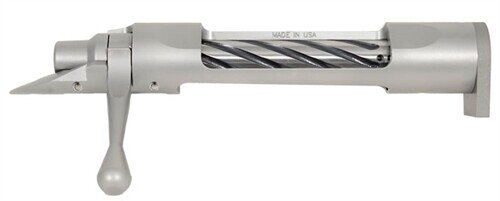

Borden Accuracy Timberline Long Action Magnum Repeater

  • Action
  • Picatinny Rail
  • Double blind pinned Recoil Lug
  • Individually timed and mated Jewell Trigger HVR

These are the most accurate repeater hunting actions on the market.They are manufactured to true benchrest tolerances and yet are made to be reliable in the field.

Timberline Actions fit stocks inletted for Remington 700 long actions (Repeater action weighs 808gm)

Action Footprint designed to be drop in for stocks inletted for Remington 700 (standard action now has straight machined handle and McMillan

offers that inletting Rem 700 handle still available for those that want to fit stocks already inletted for Rem 700 with Rem 700 handle)

  • Hardened Stainless Steel Action Body(40 Rc)
  • Hardened and ground 4140 Bolt Body (44 Rc)
  • Bolt Body to Action Body clearance <.002 inch
  • Bolt Face perpendicular within .0002 inch -This is best in industry
  • Manufactured Right Hand or Left hand
  • Bolt Head and lugs designed to smoothly fit action raceway so that “anti-bind rail” is not needed
  • 1 1/16 x 18 TPI Threading for barrel tenon
  • Neatly executed spiral fluting on bolt body
  • Silver brazed on Borden Machined Bolt Handle (Remington 700 handle available as option)
  • There are NO TAPS used in the manufacture of these actions
  • Thread Milled 8×40 Blind Scope block holes
  • Thread Milled 1/4×28 Guard Screw Holes
  • Standard and “Magnum” port length available for each model
  • Remington and Wyatt magazine wells available in each model
  • Single shot and repeaters available in each model
  • Proprietary feed rails designed to smooth feed even Short Magnums and Ultra Magnums
  • Medium Sako Style Extractor installed with plunger positioned for low ejection angle
  • M16 style extractor available on bolts with 308 and magnum boltfaces-no extra charge

PLEASE NOTE: We can only ship this to a dealer. Please contact us if you would like to purchase so we can discuss your dealer of choice and calculate accurate freight.

Weight 1.1 kg
