Calonox Sight Thermal Scope

SKU: Sight Categories: , , , , Brand:

$6,070.00 Inc. GST

Availability: In stock

Leica Calonox Sight Thermal Scope

The completely new developed Leica Calonox thermal imaging cameras are offered in two versions: As a pure observation device – Leica Calonox “View” – and as an header device for mounting in conjunction on a riflescope – Leica Calonox “Sight”.

Leica Camera has been known for many years as a manufacturer of digital cameras for the highest demands. In contrast to conventional digital cameras, thermal imaging cameras record infra-red radiation, which is not visible to the human eye, as a thermal image. The two new Leica Calonox thermal imaging cameras have been optimised for their respective applications and feature outstanding Leica typical image quality with particularly detailed grey tones, outstanding contrast and high detail resolution at all observation distances.

The permanently installed rechargeable battery with more than 6 hours of operating time is particularly well protected against cold and weather influences by its positioning inside the Calonox devices. The unique product design is oriented towards the needs of the hunter and integrates perfectly into the hunter’s equipment due to its cylindrical shape and ease of use – whether mounted or hand-held. Operation with only three buttons is intuitive, user-friendly and reduced to the essentials. Both models feature a fast 42 mm lens.

Leica Calonox “Sight”

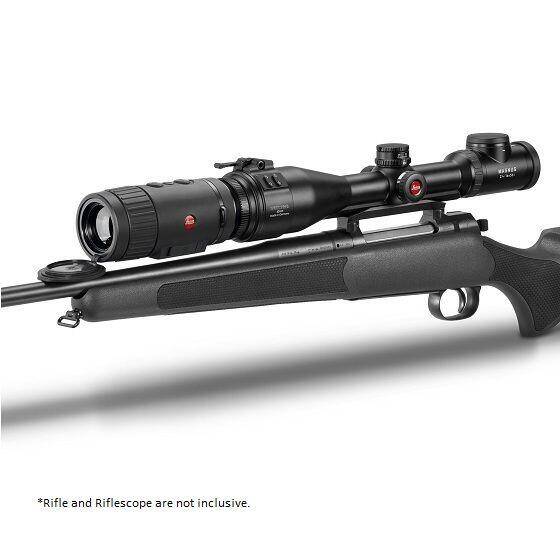

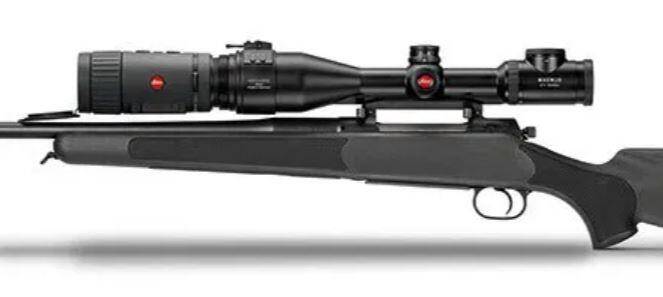

The Leica Calonox “Sight” header device is optimised for use in conjunction with a conventional riflescope and is therefore equipped with 1x magnification. Due to the fixed construction of the complete system, the Calonox “Sight” is consistently accurate. The horizontal field of view from 15.5 to 100 meters provides a great overview, while the 384×288 pixel sensor in combination with the high-resolution OLED display and Leica’s own image processing (Leica Image Optimisation – LIO) ensures a detailed image. High-quality adapters for mounting on a riflescope are available for all common lens sizes.

The common advantages of the Leica Calonox at a glance

  • Outstanding imaging performance – extremely high contrast and detail
  • High detection and recognition range
  • Leica Image Optimisation – LIO
  • Integrated, protected battery, additionally possible with power bank use
  • Two models – optimised for the respective application
  • High speed 42mm lens
  • Application-oriented design with intuitive 3-button operation
Sensor size 384 x 288 px
Product Weight 685gm
Sensor type VOx
Pixel size 17 µm
Display resolution 1024 x 768 px
Display type OLED
Display diagonal 0.39″
Angular field of view 8.9 x 6.7°
Dimension 165 x 65 mm
Image repetition frequency 50Hz
Detection range 2000 m
Recognition range 700 m
Identification range 350 m
Adjustment reticle correction 1.2 cm/50 m
2.4 cm/100 m (0.86 inch/100 yrd)
Video output PAL
Cable socket USB-C
Wireless connection Bluetooth
Operating temperature -20 to +50 °C
Operating temperature (charge battery) +10 to +30 °C
Battery life approx. 8-11 h
Accessory thread M52 x 0.75
Tripod thread A ¼ DIN 4503 (¼”), M5 standard thread
Colour mode Red Hot, White Hot, Black Hot, Rainbow
Magnification 1x
Objective Diameter 42
Detection Range 2000
Level Of Protection IP67
Warranty 2 years
Rechargeable Yes
Weight 2 kg
